Nibco F-617-O-2 name 2-1/2 in

Product Description

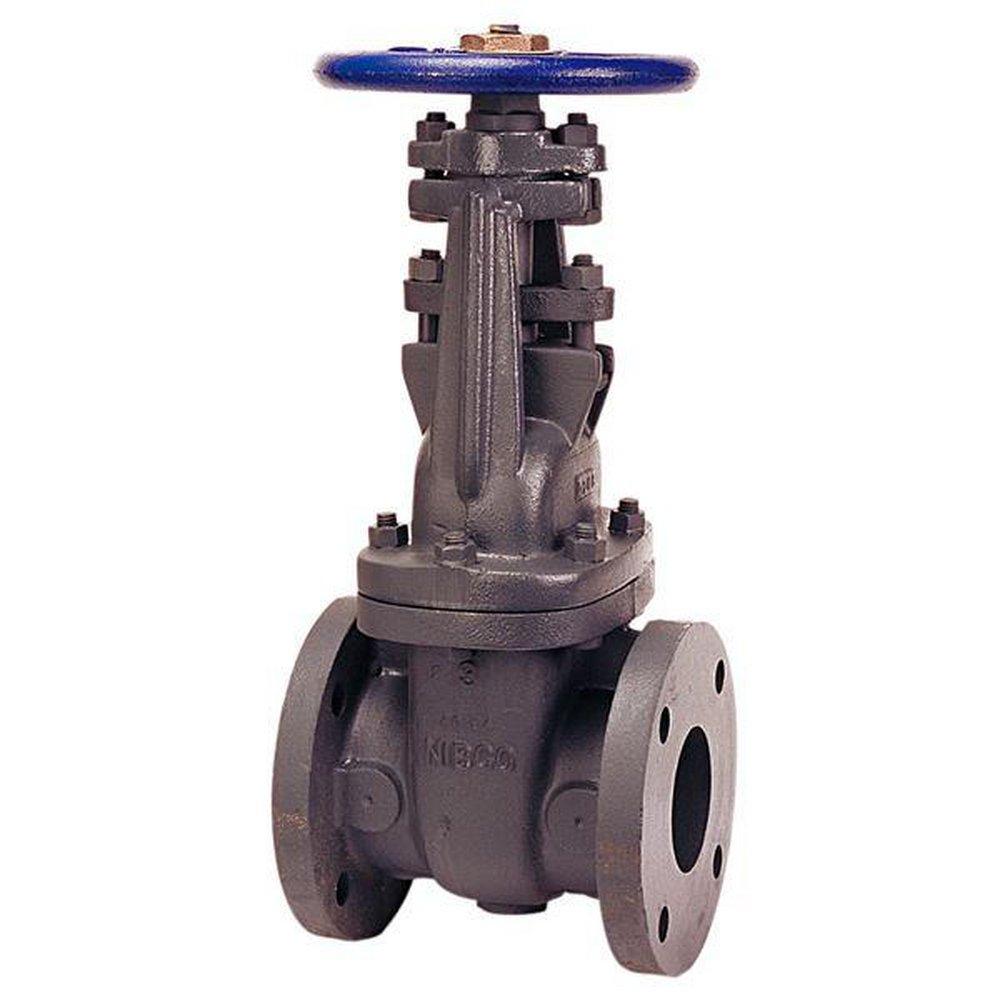

The Nibco F-617-O-2 is a flanged cast iron gate valve used in commercial and industrial applications, including hot and cold water, HVAC, steam, gas and other general utility services. It features an outside screw and yoke, solid wedge, and bolted bonnet. Conforms to MSS SP-70.

• Outside screw and yoke
• Solid wedge
• Bolted bonnet
• Iron body bronze mounted (IBBM)

Product Highlights

The Nibco F-617-O-2 gate valve is suitable for use in a variety of applications. It has class 125 flanged flat face end connections.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: F-617-O-2
• Country of Origin: Domestic

Technical Specifications

• ASTM: ASTM A126 Class B, ASTM A307, ASTM A536, ASTM A563, ASTM B140, ASTM B16, ASTM B584, ASTM B783
• Collection: F-617-O
• End Connection 1: Flanged
• End Connection 2: Flanged
• End Connections: Flanged
• FM Approved: No
• Handle Length (in): 8
• Handle Material: Cast Iron
• Length: 7-1/2
• MSS: MSS SP-70
• Material: Cast Iron, Cast Copper
• NSF Certified: No
• Origin: Domestic
• Pressure - High: 125, 200
• Pressure Class: 125#
• Recommended Valve Application: Cold Working Pressure, Commercial, Gas, Industrial, Steam, Water
• UL Listed: No
• Valve Body Material: Cast Iron
• Valve Body Style: Flanged
• Valve Bonnet Type: Bolted
• Valve Disc Material: Cast Iron
• Valve Operator: Handwheel
• Valve Port Opening: Full Port
• Valve Seat Material: Cast Copper
• Valve Size: 2-1/2 in
• Valve Stem: Outside
• Valve Type: Gate Valve
