Nibco E022900 Cxm Dwv Threaded Cast Copper Fitting

Product Description

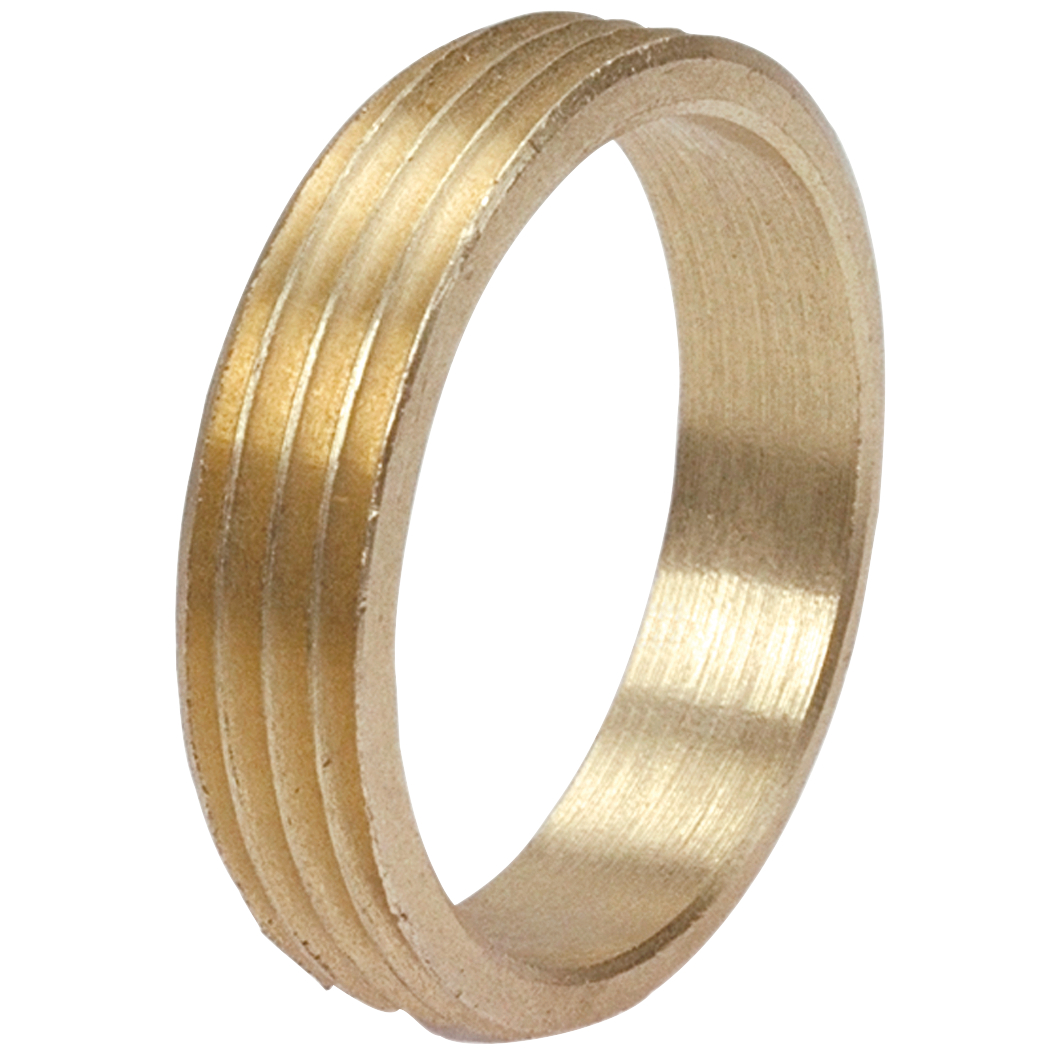

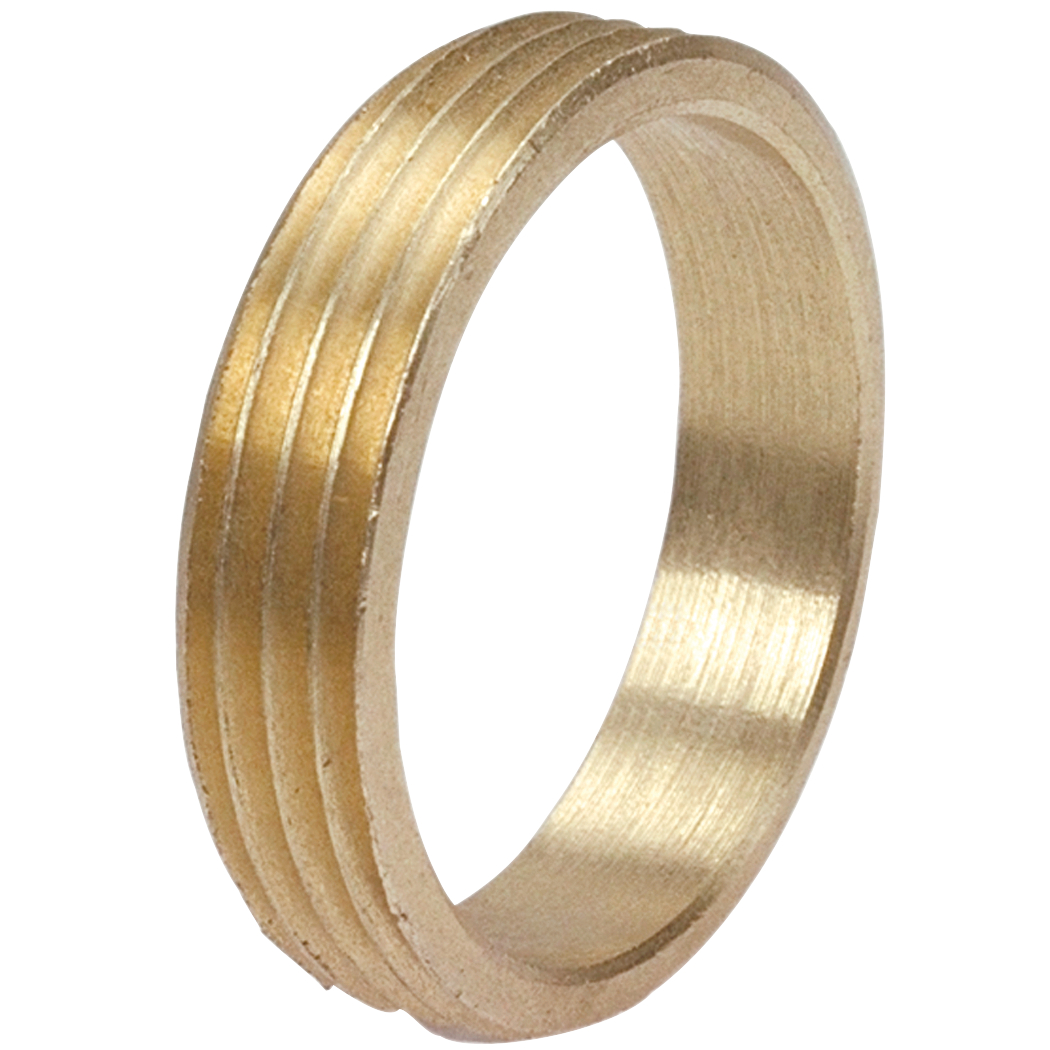

The NIBCO E022900 is a cast copper CXM DWV threaded piece fitting designed for drain, waste, and vent piping systems. It combines a solder cup inlet with a male NPT threaded outlet, allowing a transition from sweat-soldered copper tube to a threaded connection. When soldered to the end of the tube and paired with a slip joint nut and washer, the fitting provides a secure slip joint connection. Manufactured in an ISO 9001 certified facility, this fitting meets the quality and dimensional standards expected by licensed plumbers working in residential and light commercial DWV applications.

This fitting is used in drain, waste, and vent piping runs where a copper tube must terminate or transition to a threaded connection. It is suited for residential and light commercial plumbing installations where slip joint assemblies are required. The CXM configuration accepts a standard copper tube on the solder cup end and connects to NPT-threaded fittings, traps, or drain bodies on the male thread end. Plumbers working on fixture drain connections, trap assemblies, and vent tie-ins will find this fitting applicable to common rough-in and finish plumbing scenarios.

Key Features

• Solder cup inlet and male NPT threaded outlet for copper-to-thread transitions
• Enables slip joint connections when used with a slip joint nut and washer
• Cast copper construction offers durability and corrosion resistance
• Manufactured in an ISO 9001 certified facility for consistent dimensional accuracy
• Backed by a 50-year limited warranty
• Copper material supports use in sustainable and green-building projects due to reusability

Compatibility

Designed as an OEM-style replacement or new-installation fitting for residential and light commercial copper DWV piping systems using CXM slip joint configurations.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and ensure the pipe and fitting surfaces are clean and dry before soldering the cup end. Use appropriate flux and lead-free solder per code requirements for DWV copper fittings. Refer to NIBCO technical data sheets and catalogs for full engineering and installation guidance before proceeding.

Technical Specifications

• Fitting Type: CXM DWV Threaded Piece
• Connection Type: Solder Cup Inlet x Male NPT Thread Outlet
• Material: Cast Copper
• Application: Drain, Waste, and Vent (DWV)
• Certification: ISO 9001 Certified Facility
• Warranty: 50-Year Limited
• UPC: 039923473585

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: E022900
