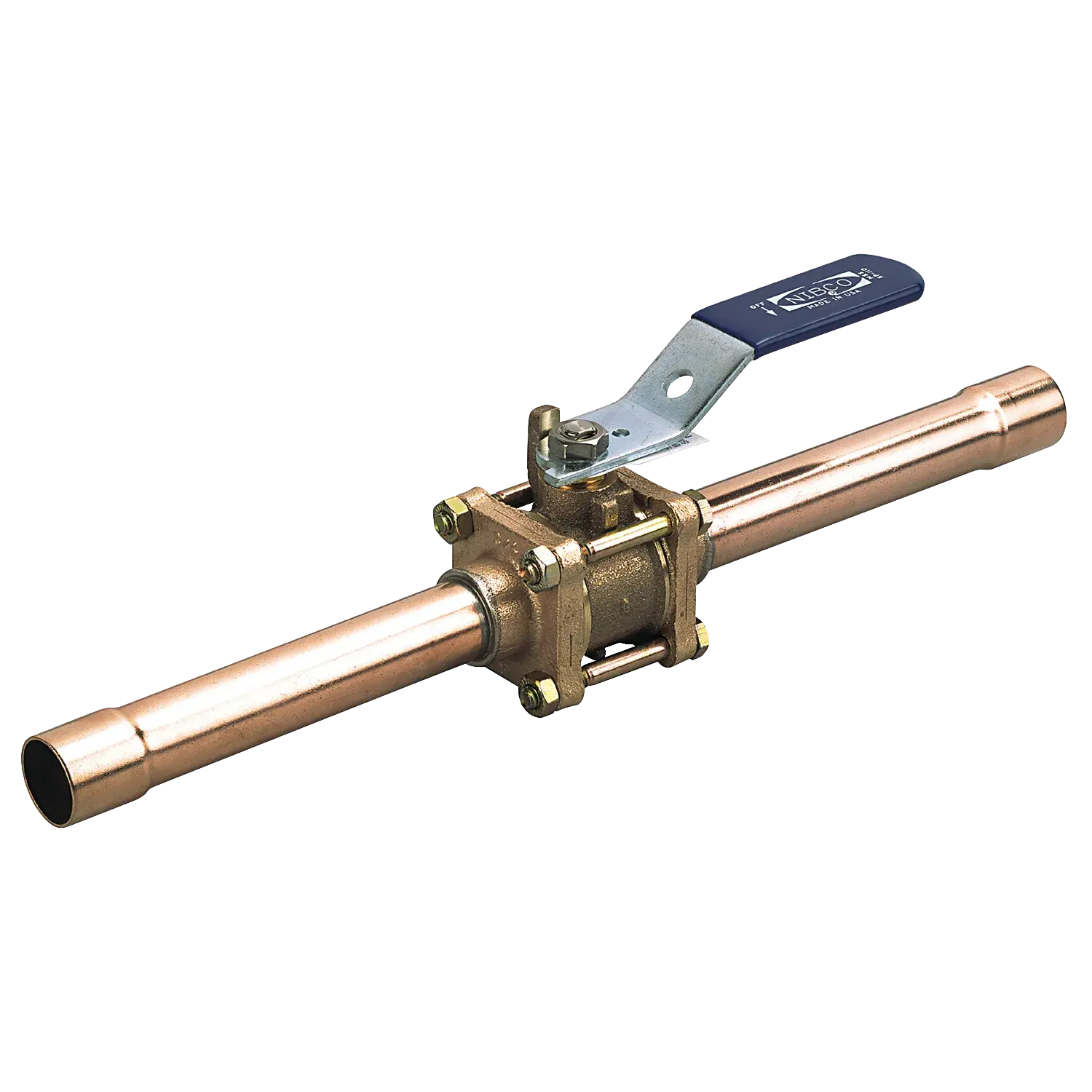

Nibco CS595-YX-66-EC three-piece bronze ball valve medical gas copper stub ends stainless trim 1-1/2 in

Product Description

The NIBCO CS595-YX-66-EC bronze ball valve provides bubble-tight shutoff at 600 PSI, making it suitable for medical gas applications. This three-piece valve is equipped with straight or extended copper stub ends for brazing in-line, allowing for isolation and throttling from half open to full open. It features a chrome plated brass ball and a blowout-proof silicon bronze stem, ensuring dezincification resistance and durability. Cleaned and bagged for medical gas service, it conforms to MSS SP-110 and meets NFPA99 and CGA Pamphlet G-4-1 oxygen cleaning requirements.

• Bubble-tight shutoff at 600 PSI for reliable performance.
• Equipped with straight or extended stub ends for in-line brazing.
• Dezincification resistant with a blowout-proof silicon bronze stem.

Product Highlights

This NIBCO bronze ball valve is designed for medical gas applications, offering bubble-tight shutoff and in-line repairability.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: CS595-YX-66-EC

Technical Specifications

• Figure Number: CS-595-YX-66, CS-595-YX-66-EC
• Cold Working Pressure: 600 psi (41.4 bar)
• Medical Gas Working Pressure: 200 psi (13.8 bar)
• Maximum Temperature Rating: 400°F
• Port Type: Full
• Ball Material: Chrome plated brass
• Stem Material: Silicon bronze
• Stem Feature: Blowout-proof
• Handle Type: Standard lever handle, optional NIB-SEAL
• End Connections: Solder
• Resistance: Dezincification resistant
• Cleaning: Cleaned and bagged for medical gas
• Compliance: MSS SP-110
• Oxygen Cleaning Standard: NFPA99 and CGA Pamphlet G-4-1
• Connection Type: CS-EC - Copper Stub Ends (Expanded Cup)
• Valve Type: Gas Ball Valve
• Body Material: Bronze
• Seat Material: PTFE
• Number of Pieces: Three
• Application: Medical Gas
• Trim: Stainless
• ASTM Standard: ASTM B-584
• Collection: CS-595-YX-66-EC
• End Connection 1: Stub End
• End Connection 2: Stub End
• IAPMO Listed: No
• NSF Certified: No
• Recommended Valve Application: Commercial
• UL Listed: No
• UPC: 039923693105
• Valve Operator: CS Locking Lever Handle
• Valve Size: 1-1/2 in
• eClass Classification: Bronze Ball Valves
• Turns/Operation: Quarter-Turn
• Valve Special Options: Oxygen Service
