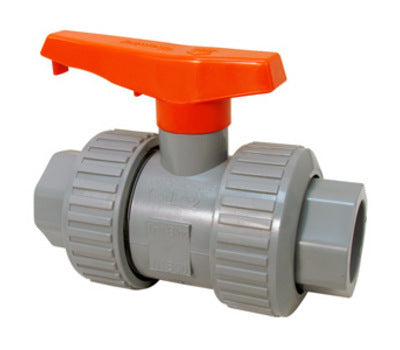

NIBCO CHEMTROL VALVES U51TB-E Chemtrol Tru-Bloc 2 in. Socket/Threaded x Socket/Threaded CPVC True Union Ball Valve

Product Description

The NIBCO CHEMTROL VALVES U51TB-E Chemtrol Tru-Bloc ball valve features a self-adjusting seat and effective blocking capability. It stops flow when an alternate union is removed, facilitating service of the piping system. Constructed from injection molded CPVC with an EPDM O-ring, this valve suits applications involving hot corrosive liquids, chemical processing, and water distribution.

• Valve pressure rating of 250 PSI at seventy-three degrees Fahrenheit.
• Maximum service temperature of two hundred ten degrees Fahrenheit.
• Designed for easy repair or replacement with a true union concept.

Product Highlights

The Chemtrol Tru-Bloc design allows easy connection with universal socket and threaded ends. This valve is lightweight, easy to install, and has a durable construction that prevents rust, scale, and corrosion.

Product Information

Standard Information

• Brand: NIBCO CHEMTROL VALVES
• MPN: U51TB-E

Technical Specifications

• Weight: 0 lbs
• Length: 0 inches
• Width: 0 inches
• Height: 0 inches
• Sell Package Quantity: 1
• Sell UOM: Each
• Feature 1: Valve pressure rating 250 PSI at 73 degrees F water non-shock full port
• Feature 2: Maximum service temperature - 210 degrees F
• Feature 3: Full port
• Feature 4: True Bloc design
• Feature 5: EPDM O-ring
• Feature 6: Includes both socket and female NPT thread end connections
• Feature 7: Orange handle
• Feature 8: Do not test or use with compressed air or other gases
• Standard Compliance: ASTM F1970, NSF/ANSI 14, NSF/ANSI 61, Annex G
