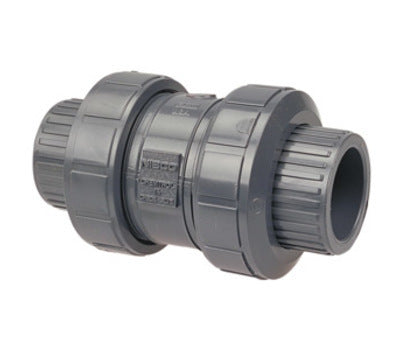

NIBCO CHEMTROL VALVES U45BC-V 2 in. Socket PVC Ball Check Valve

Product Description

NIBCO CHEMTROL VALVES U45BC-V is a two-inch socket PVC ball check valve that stops media flow in one direction but allows flow in the opposite direction. This valve is designed to minimize turbulence and maintain pump prime.

• Valve pressure rating of one hundred fifty PSI at seventy-three degrees Fahrenheit.
• True union design for easy repair and maintenance.
• Constructed from lightweight PVC with FKM O-rings for enhanced durability.

Product Highlights

This valve is ideal for chemical processing, industrial plating, chilled water distribution, chemical drainage, and irrigation systems.

Product Information

Standard Information

• Brand: NIBCO CHEMTROL VALVES
• MPN: U45BC-V

Technical Specifications

• Maximum service temperature: one hundred forty degrees Fahrenheit
• Includes: socket and female NPT thread end connections
• Non-shock pressure rating: one hundred fifty PSI at seventy-three degrees Fahrenheit
• Material: PVC Schedule 80
• Standards: ASTM F1970, NSF/ANSI standard 14, NSF/ANSI standard 61, annex G
• Ball check conversion: can be converted for air or gas venting
• Free oscillation of ball: enables full port flow with minimal turbulence
• Weight: zero
