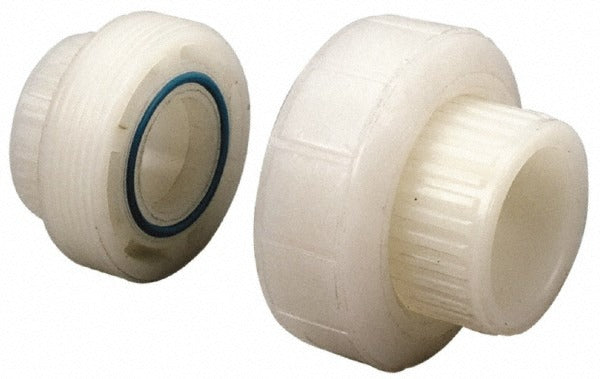

Nibco CE04200 Pvdf Socket Union 2 in Schedule 80

Product Description

The NIBCO CE04200 is a 2-inch PVDF socket union designed for Schedule 80 plastic piping systems. It provides a removable, pressure-rated connection point in chemical and industrial fluid handling lines. PVDF (polyvinylidene fluoride) offers excellent resistance to a wide range of aggressive chemicals, UV exposure, and elevated temperatures, making this union a reliable choice where standard PVC or CPVC fittings are not suitable. End connections are Slip x SR FIPT, allowing socket-welded inlet attachment and a standard female iron pipe thread on the service end. Licensed plumbers and pipefitters typically install this fitting in corrosive-service or high-purity applications.

This union is suited for industrial process piping, chemical transfer lines, and high-purity water systems where chemical resistance and system serviceability are required. The union design allows downstream components to be disconnected without cutting the pipe, which simplifies maintenance and component replacement. It is appropriate for both above-ground and enclosed mechanical installations where Schedule 80 PVDF is specified by the design engineer or required by system pressure ratings.

Key Features

• PVDF construction provides broad chemical resistance and UV stability
• Schedule 80 wall thickness rated for higher pressure service than Schedule 40
• Slip x SR FIPT end connections accommodate solvent-cement socket joining and threaded makeup
• Union design allows in-line disconnection without cutting pipe
• 2-inch fitting size suits mid-range industrial and process piping applications

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 PVDF piping systems using 2-inch socket and female iron pipe thread connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter familiar with Schedule 80 thermoplastic piping systems. Depressurize and drain the line completely before disassembly or fitting installation. Solvent cement the socket end per the pipe manufacturer's recommended procedure for PVDF; allow full cure time before pressurizing. Threaded connections should be made with PTFE tape or a compatible thread sealant rated for PVDF and the service fluid.
