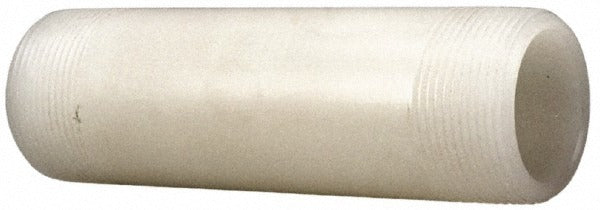

Nibco CE03900 Pvdf Threaded Pipe Nipple Sch 80 1-1/2 in

Product Description

The NIBCO CE03900 is a Schedule 80 PVDF threaded pipe nipple designed for use in industrial and chemical piping systems where corrosion resistance and pressure-rated performance are required. PVDF (polyvinylidene fluoride) is a high-purity thermoplastic that resists a broad range of aggressive chemicals, making this nipple well-suited for systems handling acids, solvents, and other corrosive media. The natural finish indicates uncolored, virgin PVDF material. The threaded ends allow direct connection to Schedule 80 threaded fittings and valves without solvent cement, making installation straightforward for licensed plumbers and pipefitters working in industrial, chemical processing, or high-purity fluid-handling applications.

This nipple is used in 1-1/2 inch pipe systems requiring Schedule 80 wall thickness for higher pressure ratings and mechanical strength. Typical install scenarios include chemical feed lines, water treatment systems, semiconductor facility piping, and industrial process lines where metal pipe is unsuitable due to corrosion concerns. The threaded configuration suits applications where disassembly or field modification is anticipated. Installation is performed by plumbers and pipefitters familiar with plastic pressure piping systems.

Key Features

• PVDF construction provides excellent resistance to acids, bases, and many organic solvents
• Schedule 80 wall thickness delivers greater pressure capacity compared to Schedule 40
• Threaded ends for tool-based mechanical connection without solvent cement
• Natural color indicates virgin, uncolored PVDF material
• Lightweight at 1 pound, reducing load on threaded connections and supports

Compatibility

Designed as an OEM-style replacement or new-installation component for Schedule 80 PVDF threaded piping systems using 1-1/2 inch pipe size.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter familiar with plastic pressure piping per applicable IPC and ASME B31 standards. Isolate and depressurize the system and drain the line before removing or installing any threaded nipple. Use PTFE thread tape or a PVDF-compatible thread sealant rated for the media being conveyed — do not use petroleum-based pipe dopes that may degrade PVDF. Avoid over-torquing threaded connections, as excessive force can crack plastic fittings.
