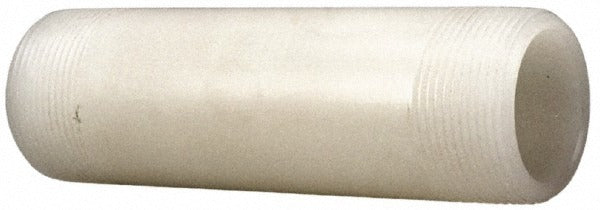

Nibco CE03875 Pvdf Threaded Pipe Nipple Sch 80 1x3 in

Product Description

The NIBCO CE03875 is a Schedule 80 PVDF threaded pipe nipple designed for demanding fluid handling applications where chemical resistance and pressure integrity are critical. Measuring 1 inch in pipe diameter and 3 inches in length, this nipple is molded from polyvinylidene fluoride (PVDF), a high-performance thermoplastic known for its resistance to a broad range of aggressive chemicals, UV exposure, and elevated temperatures. The natural color finish indicates virgin, unpigmented PVDF material. Licensed plumbers and pipefitters typically specify Schedule 80 fittings when system pressures or corrosive media exceed the limits of Schedule 40 plastic components.

This nipple is suited for use in industrial process piping, chemical transfer lines, water treatment systems, and high-purity fluid handling installations. Its Schedule 80 wall thickness provides increased pressure ratings compared to standard-weight plastic pipe, making it appropriate for both residential and light commercial applications where chemical compatibility is a primary design constraint. The threaded ends allow direct connection to standard NPT-threaded fittings, valves, and pipe without solvent welding or special tooling.

Key Features

• PVDF construction offers superior resistance to acids, bases, halogens, and solvents
• Schedule 80 wall thickness delivers higher pressure ratings than Schedule 40 plastic pipe
• NPT threaded ends enable straightforward connection to standard fittings and valves
• Natural color indicates virgin PVDF material free of colorant additives
• 1 inch pipe diameter x 3 inch length suits a wide range of close-nipple and extension configurations

Compatibility

Designed as an OEM-style replacement or new-installation component for Schedule 80 PVDF threaded piping systems using standard NPT connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter familiar with thermoplastic piping systems. Isolate and depressurize the line before assembly or removal. Use PTFE thread tape or an approved thread sealant rated for PVDF and the media being conveyed. Avoid over-torquing threaded connections, as excess force can crack PVDF fittings. Follow applicable plumbing codes including IPC guidelines for plastic piping in the jurisdiction of installation.
