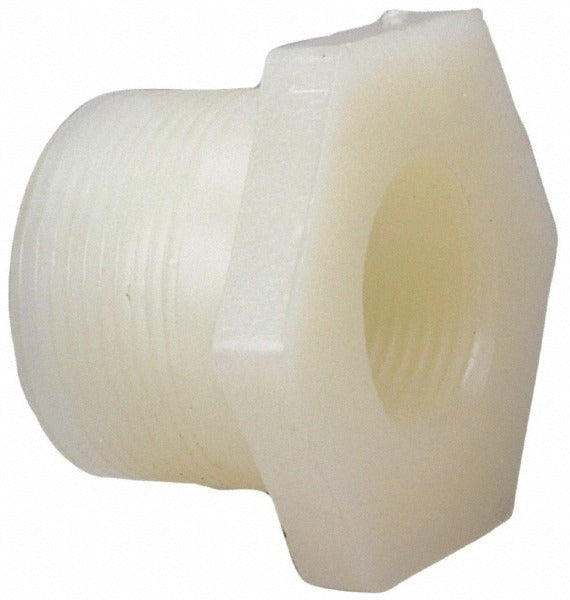

Nibco CE03400 Pvdf Reducer Bushing 2x1 in Sch 80

Product Description

The NIBCO CE03400 is a flush threaded reducer bushing manufactured from PVDF (polyvinylidene fluoride), a high-performance thermoplastic rated for demanding industrial and chemical service applications. This Schedule 80 fitting transitions from a 2-inch male iron pipe thread (MIPT) on the outer end to a 1-inch female iron pipe thread (FIPT) on the inner end, reducing line size within a threaded piping system. PVDF offers excellent resistance to a broad range of corrosive chemicals, UV exposure, and high-purity fluid handling requirements. Licensed plumbers, pipefitters, and industrial mechanical contractors install this type of fitting in process piping, chemical distribution, and high-purity water systems.

This bushing is suited for Schedule 80 PVDF piping systems found in commercial and industrial installations where corrosion resistance and chemical compatibility are critical. Typical applications include chemical process lines, ultrapure water distribution, semiconductor fabrication support piping, and industrial fluid handling systems. The flush profile integrates cleanly inside a standard threaded fitting socket without protruding hardware.

Key Features

• PVDF construction provides superior resistance to corrosive chemicals, chlorinated solvents, and high-purity fluid environments
• Schedule 80 wall thickness meets ASTM D3222 standards for pressure-rated thermoplastic pipe fittings
• 2-inch MIPT x 1-inch FIPT end connections enable in-line reduction within an all-threaded system
• Flush bushing profile seats fully within the receiving fitting, minimizing flow restriction and installation footprint
• Sold individually, no minimum pack quantity required beyond one unit

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 PVDF threaded piping systems using standard NPT connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter familiar with thermoplastic threaded fittings. PVDF threads are sensitive to overtightening — use PTFE thread tape rated for chemical service rather than pipe dope, and hand-tighten plus a maximum of one to two turns with a strap wrench to avoid cracking the fitting. Depressurize and drain the line fully before removing or installing any threaded fittings. Follow applicable local plumbing codes and ASTM D3222 guidelines for pressure ratings at operating temperature.
