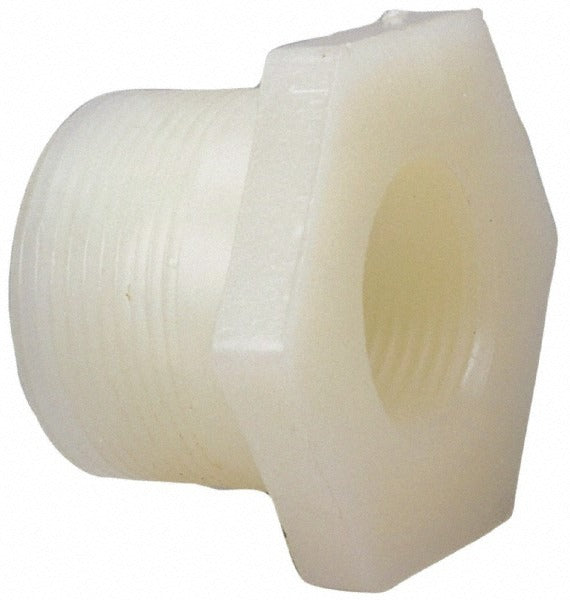

Nibco CE03350 Pvdf Reducer Bushing 1-1/2x1 in Sch 80

Product Description

The NIBCO CE03350 is a flush threaded reducer bushing manufactured from PVDF (polyvinylidene fluoride), a high-performance thermoplastic suited for aggressive chemical and high-purity fluid systems. It transitions from a 1-1/2 inch male iron pipe thread (MIPT) on the outer end to a 1 inch female iron pipe thread (FIPT) on the inner end, reducing pipe size within a threaded piping assembly. Built to Schedule 80 wall thickness, this bushing delivers the pressure rating and chemical resistance demanded in industrial and commercial plumbing applications. Installation is performed by licensed plumbers and pipefitters working on corrosive fluid, ultrapure water, or chemical process lines.

This reducer bushing is designed for use in Schedule 80 PVDF threaded piping systems handling corrosive chemicals, high-purity water, or other fluids where metal fittings are unsuitable. Typical applications include chemical processing facilities, semiconductor manufacturing water systems, laboratory plumbing, and industrial process lines where resistance to solvents, acids, and bases is required. The flush bushing profile keeps the fitting compact within the pipe run, minimizing dead volume and turbulence at the reduction point.

Key Features

• PVDF construction provides excellent resistance to a broad range of acids, bases, and solvents
• Schedule 80 wall thickness meets the pressure and mechanical demands of industrial service
• Flush reducer bushing profile minimizes dead space at the pipe size transition
• MIPT x FIPT end connections allow direct thread-in installation within existing threaded assemblies
• Meets ASTM D3222 standard for PVDF plastic pipe and fittings material
• Compact single-piece design reduces the need for additional adapters in the line

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 PVDF threaded piping systems using 1-1/2 inch to 1 inch pipe size reductions with standard NPT thread form.

Installation Notes

Installation is performed by a licensed plumber or pipefitter. Depressurize and drain the system completely before removing or installing any threaded fitting. Use PTFE thread tape or a thread sealant rated for PVDF and the specific fluid service — do not use petroleum-based compounds on PVDF fittings. Hand-tighten first, then apply minimal wrench torque; PVDF threads are susceptible to cracking from overtightening, so follow the fitting manufacturer guidelines for thread engagement.
