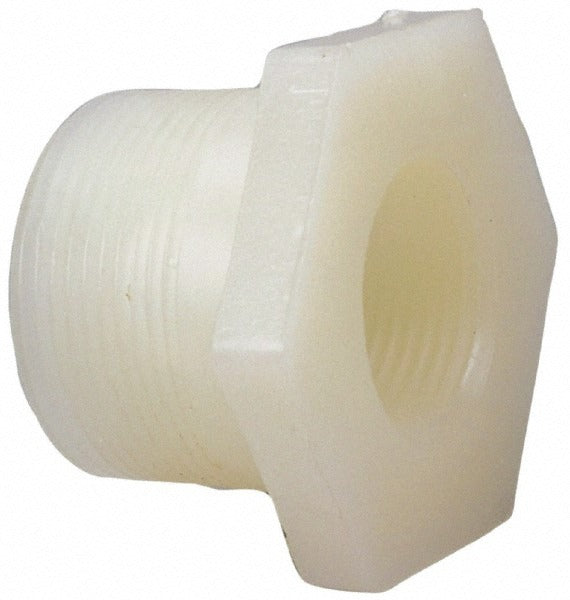

Nibco CE03250 Pvdf Reducer Bushing 3/4x1/2 in Sch 80

Product Description

The NIBCO CE03250 is a flush threaded reducer bushing manufactured from PVDF (polyvinylidene fluoride) plastic, designed to reduce a 3/4-inch female threaded port down to a 1/2-inch male threaded connection. Built to Schedule 80 wall thickness, this bushing delivers the pressure ratings and chemical resistance required in demanding fluid-handling systems. End connections are MIPT x FIPT, allowing direct threaded installation into existing pipe assemblies without additional adapters. Plumbers and pipefitters working with corrosive media, high-purity water systems, or chemical process lines select PVDF fittings for their broad chemical compatibility and structural integrity across a wide service temperature range.

This reducer bushing is suited for residential and commercial piping applications where threaded Schedule 80 PVDF connections are specified. Typical install scenarios include chemical distribution systems, deionized water lines, semiconductor fab support piping, and industrial process plumbing where metal fittings are not acceptable due to corrosion or contamination concerns. The flush bushing profile keeps the installed assembly compact and maintains a clean bore transition between pipe sizes.

Key Features

• PVDF construction provides strong resistance to a broad range of chemicals, solvents, and UV exposure
• Schedule 80 wall thickness delivers higher pressure ratings compared to Schedule 40 fittings of the same size
• Flush reducer bushing profile minimizes turbulence at the reduction point and keeps the fitting compact
• MIPT x FIPT end connections enable direct threaded assembly without secondary adapters
• Meets ASTM D3222 standard for PVDF plastic pipe and fittings materials
• Sold individually, suitable for small-quantity repair or replacement work

Compatibility

Designed as an OEM-style replacement or new-install fitting for Schedule 80 threaded PVDF piping systems with a 3/4-inch female port requiring a 1/2-inch male threaded transition.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter familiar with thermoplastic threaded fittings. Shut off and depressurize the system completely before removing or installing any fitting. Use PTFE thread tape rated for PVDF and chemical service; do not use paste-type thread sealants unless confirmed compatible with PVDF. Avoid over-tightening threaded plastic fittings, as excess torque can crack the bushing body.
