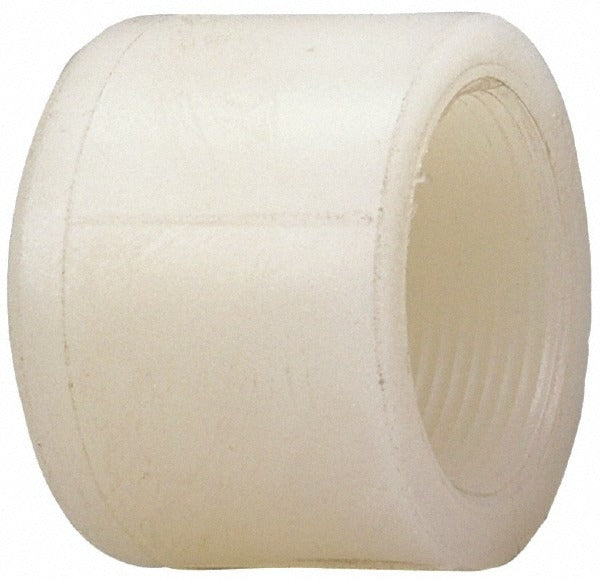

Nibco CE02900 Pvdf Pipe End Cap 1-1/2 in Schedule 80

Product Description

The NIBCO CE02900 is a Schedule 80 PVDF thermoplastic pipe end cap designed to terminate 1-1/2 inch female iron pipe thread (FIPT) connections in industrial and chemical piping systems. PVDF (polyvinylidene fluoride) offers excellent resistance to a wide range of aggressive chemicals, UV exposure, and high-purity process fluids, making it a common material choice where standard PVC or CPVC would be inadequate. The cap threads directly onto exposed male pipe ends to provide a secure, leak-free termination. Installation is performed by licensed plumbers or pipefitters working on industrial process, chemical handling, or high-purity fluid systems.

This end cap is suited for use in chemical processing, semiconductor fabrication, water treatment, and industrial plumbing applications where Schedule 80 wall thickness and PVDF material compatibility are required. The FIPT end connection allows direct makeup onto male-threaded Schedule 80 plastic or compatible metal pipe. It is appropriate for both new construction and retrofit installations where a durable pipe termination is needed in corrosive or high-purity environments.

Key Features

• PVDF construction provides superior chemical resistance compared to PVC and CPVC
• Schedule 80 wall thickness rated for higher pressure service
• FIPT end connection threads onto standard male pipe ends
• 1-1/2 inch fitting size for common industrial pipe runs
• Suitable for UV-exposed and high-purity fluid applications

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 PVDF piping systems using 1-1/2 inch FIPT connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter familiar with thermoplastic piping systems. Depressurize and drain the line completely before threading on the cap. Use PTFE thread tape or a compatible thread sealant rated for PVDF and the specific process fluid. Do not use pipe wrenches directly on PVDF fittings without jaw protection, as overtightening can crack the fitting body.
