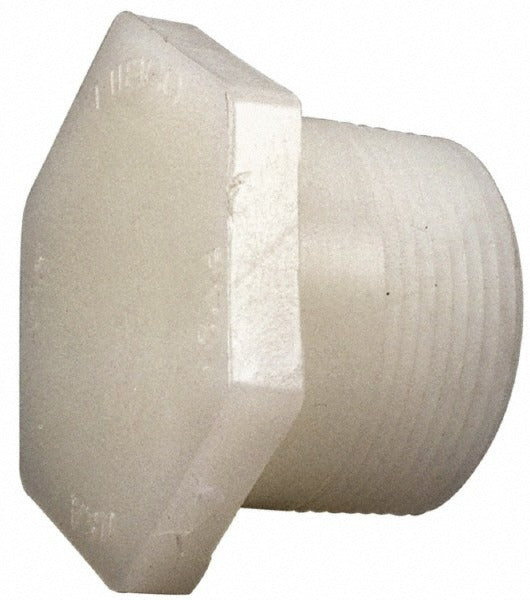

Nibco CE02450 Pvdf Hex Plug 2 in Schedule 80 Mipt

Product Description

The NIBCO CE02450 is a 2-inch Schedule 80 PVDF hex plug designed to seal the end of a threaded pipe or fitting in demanding industrial and chemical process piping systems. PVDF (polyvinylidene fluoride) is a high-performance thermoplastic with excellent resistance to a wide range of aggressive chemicals, UV exposure, and elevated temperatures, making it a preferred material where standard PVC or CPVC would be insufficient. The male iron pipe thread (MIPT) connection allows the plug to thread directly into a female-threaded fitting or valve body. Installation and removal are straightforward using a pipe wrench or hex key applied to the hex head profile. This fitting is handled by licensed plumbers, pipefitters, and industrial maintenance technicians.

The CE02450 is suited for use in chemical processing, water treatment, semiconductor fabrication, and industrial fluid handling applications where both corrosion resistance and pressure-rated performance are required. Schedule 80 wall thickness provides the additional pressure capacity needed in systems operating beyond the limits of Schedule 40 components. The MIPT end connection is compatible with standard female NPT threaded fittings and pipe systems built to PVDF Schedule 80 specifications.

Key Features

• PVDF construction offers superior chemical resistance compared to PVC and CPVC fittings
• Schedule 80 wall thickness rated for higher-pressure service than Schedule 40
• Hex head profile allows standard wrench engagement for secure installation and removal
• MIPT end connection threads directly into standard female NPT fittings
• Suitable for UV-exposed and outdoor piping installations

Compatibility

Designed as an OEM-style threaded plug for use in PVDF Schedule 80 pipe systems utilizing standard female NPT threaded connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable plumbing codes such as the IPC. Depressurize and drain the pipe system completely before removing or installing any threaded fittings. Apply PTFE tape or an approved thread sealant compatible with PVDF to the male threads before installation. Do not overtighten, as PVDF fittings can crack under excessive torque.
