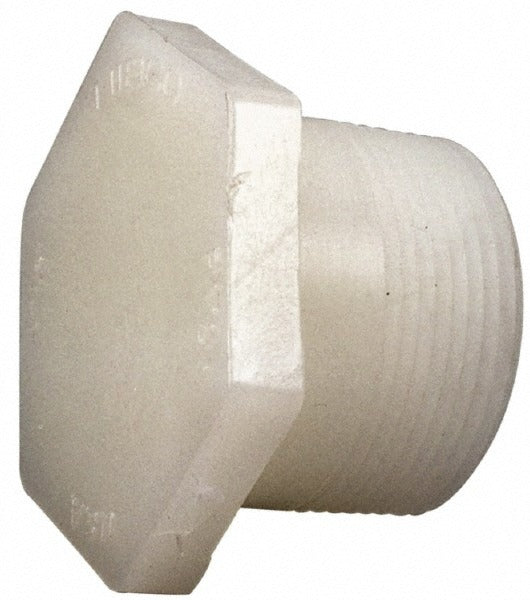

Nibco CE02250 Hex Plug 1/2 Inch Pvdf Schedule 80 Mipt

Product Description

The NIBCO CE02250 is a 1/2 inch Schedule 80 hex plug manufactured from PVDF (polyvinylidene fluoride) thermoplastic. It is designed to seal off male-threaded pipe ends using a Male NPT (MIPT) connection. Schedule 80 wall thickness provides the pressure ratings and mechanical strength required in demanding industrial and chemical service applications. PVDF offers excellent resistance to a broad range of corrosive chemicals, UV exposure, and elevated service temperatures, making it suitable for systems where metal fittings would degrade. Plumbers and pipefitters working in chemical process, high-purity water, or industrial plumbing systems typically install this fitting.

This hex plug is suited for use in Schedule 80 PVDF piping systems in residential, commercial, and industrial settings where corrosive fluid containment or high-purity flow is required. Typical applications include chemical distribution lines, semiconductor fabrication water systems, laboratory plumbing, and industrial process piping. The hex-head profile allows standard wrench engagement for proper installation torque without damaging the fitting body.

Key Features

• PVDF construction provides superior chemical and UV resistance compared to PVC or CPVC fittings
• Schedule 80 rated for higher pressure service in thermoplastic piping systems
• Male NPT (MIPT) thread connection for direct engagement into female-threaded fittings or pipe ends
• Hex-head design allows wrench installation without marring the fitting
• Meets ASTM D3222 standard for PVDF material specification
• 1/2 inch fitting size suitable for common small-diameter piping runs

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 PVDF thermoplastic piping systems using standard Male NPT threaded connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter familiar with thermoplastic threaded fittings. Shut off and depressurize the piping system completely before removing or installing any plugs or fittings. Use PTFE thread tape or a compatible thread sealant rated for PVDF and the specific media being conveyed. Avoid over-tightening, as PVDF threads can crack under excessive torque; hand-tighten plus approximately one to two turns with a wrench is the general guideline for plastic NPT fittings per manufacturer practice.
