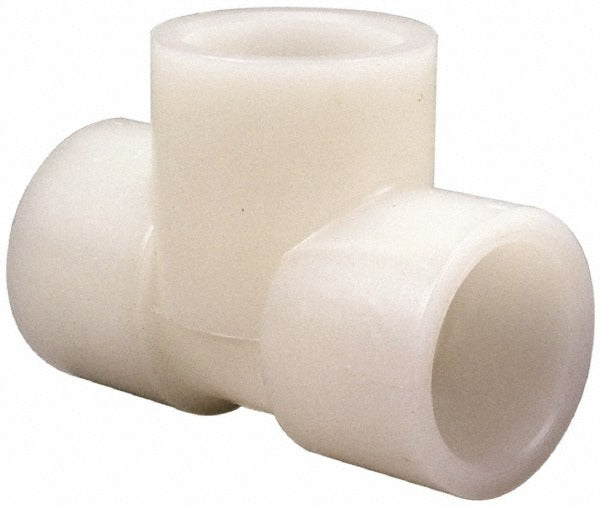

Nibco CE01900 Pvdf Socket Tee 1-1/2 in Schedule 80

Product Description

The NIBCO CE01900 is a 1-1/2 inch PVDF thermoplastic socket tee rated for Schedule 80 service. It features three socket-style end connections (S x S x S) and is designed for use in corrosive-fluid piping systems where standard PVC or CPVC materials are inadequate. PVDF delivers superior chemical resistance and retains mechanical strength across a broad temperature range. This fitting is installed by licensed plumbers and industrial pipefitters working on chemical process, high-purity, or industrial fluid-handling systems.

This fitting is suited for commercial and industrial applications involving aggressive chemicals, ultrapure water, or high-temperature fluid lines. The socket-end configuration accepts solvent-welded connections in compatible Schedule 80 PVDF piping systems. Typical installation environments include chemical processing plants, semiconductor fabrication facilities, laboratory systems, and industrial water treatment installations.

Key Features

• PVDF construction provides exceptional resistance to aggressive chemicals, solvents, and oxidizing agents
• Schedule 80 wall thickness suits higher-pressure and industrial-duty piping systems
• S x S x S socket connections allow solvent-cement joining to Schedule 80 PVDF pipe
• 1-1/2 inch fitting size accommodates standard mid-range process piping layouts
• Weighs approximately 1 pound, keeping handling and installation straightforward

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 PVDF thermoplastic piping systems using 1-1/2 inch socket-end connections.

Installation Notes

Installation should be performed by a qualified plumber or pipefitter familiar with thermoplastic solvent-weld procedures. Flush and depressurize the line completely before cutting into an existing system. Use only PVDF-compatible solvent cement and follow the cement manufacturer's cure time requirements before returning the line to service. Consult applicable plumbing codes, including the IPC, for pressure ratings and approved applications when installing in regulated environments.
