Nibco CE01500 90 Elbow 1/2 Inch Pvdf Sch 80 Fipt

Product Description

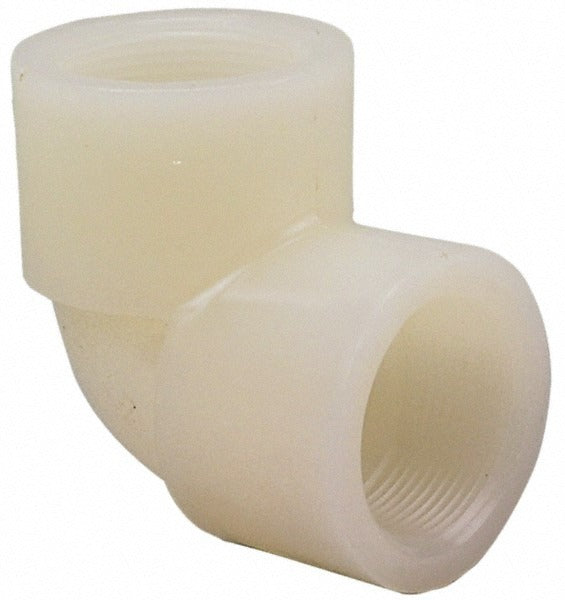

The NIBCO CE01500 is a 90-degree elbow fitting manufactured from PVDF (polyvinylidene fluoride), rated for Schedule 80 service. PVDF is a high-purity thermoplastic with strong resistance to acids, bases, halogens, and many organic solvents, making it a go-to material for demanding fluid-handling applications. Both end connections are female iron pipe thread (FIPT), allowing direct threaded engagement with male-threaded pipe or fittings. At 1/2 inch in size, this fitting is suited for smaller-diameter process and chemical lines. Plumbers, pipefitters, and chemical process technicians are the primary installers of this type of fitting.

This fitting is used in residential and commercial plumbing, chemical processing, water treatment, and industrial fluid-distribution systems where chemical resistance and purity are required. PVDF Schedule 80 fittings are commonly specified in systems handling aggressive chemicals, ultrapure water, or corrosive fluids where standard PVC or CPVC would not provide adequate resistance. The FIPT x FIPT configuration makes it suitable for connecting to threaded plastic or compatible metal pipe assemblies.

Key Features

• PVDF construction offers excellent resistance to a broad range of chemicals, acids, and solvents
• Schedule 80 wall thickness provides higher pressure ratings compared to Schedule 40
• FIPT x FIPT end connections for straightforward threaded assembly
• 1/2 inch fitting size suitable for small-diameter process and chemical piping lines
• Meets ASTM D3222 standard for unfilled PVDF material

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 PVDF threaded piping systems using 1/2 inch female iron pipe thread connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter familiar with thermoplastic threaded fittings. Shut off all fluid supply and depressurize the system before working on any fitting. Use PTFE thread tape or a compatible thread sealant rated for PVDF and the specific fluid being handled — avoid pipe dopes containing solvents that can attack PVDF. Do not overtighten threaded connections; hand-tight plus one to two turns with a strap wrench is the general practice for plastic threaded fittings to prevent cracking.
