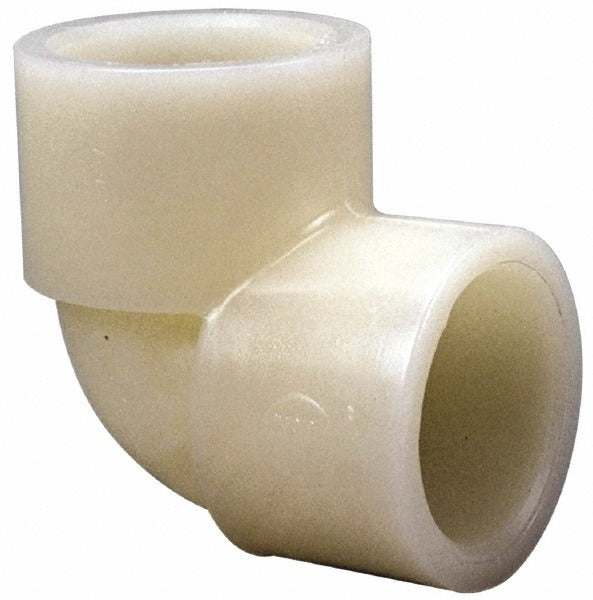

Nibco CE01450 90 Elbow 2 in Pvdf Sch 80 Slip X Sr Fipt

Product Description

The NIBCO CE01450 is a 90-degree elbow pipe fitting manufactured from PVDF (polyvinylidene fluoride), designed for Schedule 80 pressure piping systems. Sized at 2 inches with Slip x SR FIPT (slip socket by short-run female iron pipe thread) end connections, this fitting allows a directional change of 90 degrees in a piping run. PVDF is a high-purity thermoplastic well suited to aggressive chemical service, offering strong resistance to acids, bases, and halogens. Licensed plumbers and industrial pipefitters install this fitting in systems where chemical compatibility and pressure rating are both critical requirements.

The CE01450 is used in residential and commercial chemical process piping, industrial fluid handling, and high-purity water systems where metal fittings are not acceptable. Schedule 80 wall thickness provides the pressure capacity needed for demanding service conditions. The Slip x SR FIPT configuration allows solvent-cementing one end directly to Schedule 80 PVDF pipe while threading into a female-threaded fitting or valve on the other end, making it a practical transition fitting in mixed-connection systems.

Key Features

• PVDF construction provides excellent chemical resistance to acids, bases, solvents, and halogens
• Schedule 80 wall thickness rated for higher operating pressures than Schedule 40
• 90-degree elbow geometry for directional changes in piping runs
• Slip x SR FIPT end connections support solvent-cement on one side and threaded makeup on the other
• 2-inch fitting size for medium-diameter piping systems

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 2-inch Schedule 80 PVDF piping systems using solvent-cement and threaded connections.

Installation Notes

Installation of Schedule 80 PVDF fittings should be performed by a licensed plumber or qualified pipefitter familiar with thermoplastic solvent-cement procedures. Depressurize and drain the system completely before cutting into any existing piping. Use only PVDF-compatible solvent cement on the slip end and apply appropriate thread sealant rated for chemical service on the SR FIPT connection. Follow IPC and local plumbing code requirements for support spacing and pressure testing after installation.
