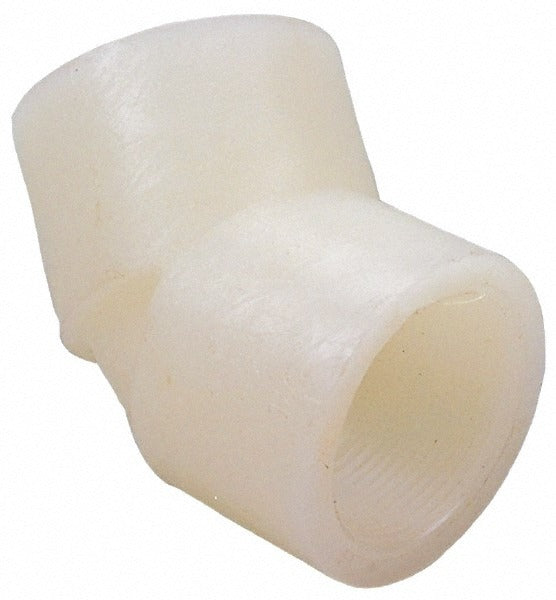

Nibco CE00950 Pvdf 45 Degree Elbow 2 in Sch 80

Product Description

The NIBCO CE00950 is a 2-inch PVDF (polyvinylidene fluoride) 45-degree elbow fitting rated for Schedule 80 service. It connects via Slip x SR FIPT end connections, making it compatible with both solvent-welded socket and threaded piping configurations. PVDF is a high-performance thermoplastic chosen for its resistance to aggressive chemicals, UV exposure, and elevated temperatures, making it a common choice in industrial and high-purity fluid systems. Licensed plumbers and pipefitters working on chemical process lines, semiconductor facilities, or similar applications typically install this fitting. At 1 pound, it is lightweight for its pressure rating and size class.

This fitting is suited for 2-inch Schedule 80 PVDF piping systems found in chemical processing, water treatment, semiconductor manufacturing, laboratory distribution, and industrial fluid handling. The 45-degree angle allows for directional changes without the abrupt flow restriction of a 90-degree elbow. The Slip x SR FIPT configuration supports transitions between solvent-cement and threaded connections in the same fitting, which simplifies layout design in mixed-connection systems.

Key Features

• PVDF construction provides excellent chemical resistance to acids, bases, and solvents
• Schedule 80 wall thickness supports higher pressure ratings than Schedule 40
• 45-degree angle reduces flow turbulence compared to sharper-angle fittings
• Slip x SR FIPT end connections allow solvent-cement socket on one end and threaded on the other
• Lightweight at 1 pound for a 2-inch Schedule 80 fitting

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-inch Schedule 80 PVDF piping systems with Slip x SR FIPT connection requirements.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter following applicable IPC or local plumbing code requirements. De-pressurize and drain the line fully before removing any existing fittings. Solvent-cement the slip end using a PVDF-compatible cement and allow full cure time before returning the line to service. Thread the SR FIPT end with an appropriate PVDF-rated thread sealant; do not use standard PTFE tape formulations not rated for PVDF applications.
