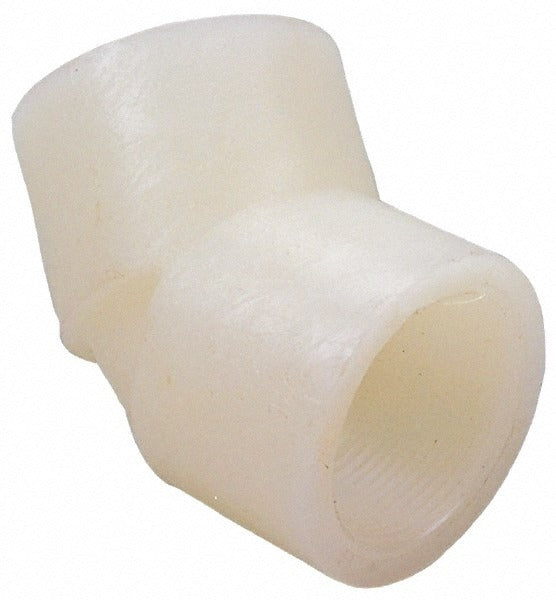

Nibco CE00800 Pvdf 45 Elbow 3/4 Inch Schedule 80

Product Description

The NIBCO CE00800 is a 3/4 inch Schedule 80 PVDF 45-degree elbow fitting designed for plastic piping systems handling corrosive or high-purity fluids. Manufactured from polyvinylidene fluoride (PVDF), this fitting offers strong chemical resistance and maintains structural integrity across a wide service temperature range. The slip by SR FIPT end connections allow direct socket integration on one end and a standard reinforced female iron pipe thread on the other. Licensed plumbers and industrial pipefitters install this fitting in chemical processing, ultrapure water, and industrial fluid handling systems where corrosion resistance is a primary concern.

This fitting is suited for Schedule 80 PVDF piping systems in both industrial and commercial applications. Typical installations include chemical distribution lines, semiconductor fabrication water systems, laboratory plumbing, and industrial process piping where metal fittings are not appropriate due to corrosive media or contamination concerns. The 45-degree angle allows smooth directional changes in tight routing layouts without sharp bends that could restrict flow.

Key Features

• PVDF construction provides excellent resistance to a broad range of acids, bases, and solvents
• Schedule 80 wall thickness rated for higher pressure service compared to Schedule 40
• 45-degree elbow geometry supports gradual directional transitions in piping runs
• Slip x SR FIPT end connections offer flexible integration with threaded and solvent-welded piping
• Suitable for high-purity and corrosive fluid applications where metal fittings are not acceptable

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 PVDF plastic piping systems using 3/4 inch slip and SR FIPT connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter familiar with PVDF solvent cementing procedures and threaded plastic fitting practices. Depressurize and drain the piping system completely before cutting into any existing line. Use only solvents and cements rated for PVDF; standard PVC or CPVC cements are not compatible with PVDF. Follow applicable plumbing codes, including IPC guidelines, for support spacing and pressure testing after installation.
