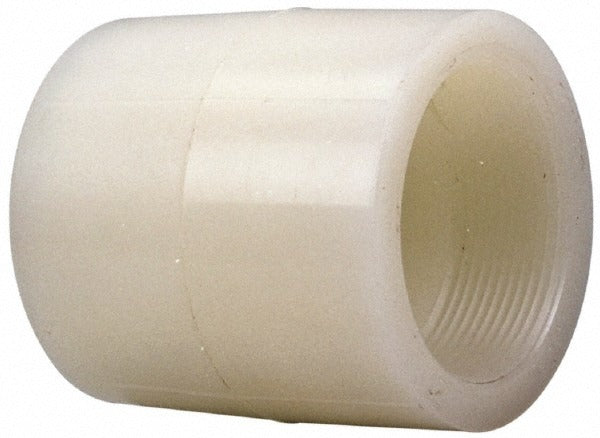

Nibco CE00700 Pvdf Adapter Coupling 2 in Sch 80 Fpt

Product Description

The NIBCO CE00700 is a 2-inch PVDF thermoplastic adapter coupling designed for Schedule 80 piping systems. It features female pipe thread connections on both ends (FPT x FPT), allowing it to join threaded pipe segments or transition between system sections in demanding fluid-handling applications. PVDF (polyvinylidene fluoride) offers strong resistance to aggressive chemicals, UV exposure, and elevated service temperatures, making this fitting well-suited for industrial, chemical processing, and high-purity fluid systems. Licensed plumbers and pipefitters are the typical installers for this type of threaded plastic fitting.

This coupling is used in Schedule 80 thermoplastic piping systems where corrosion resistance and chemical compatibility are required. Typical applications include chemical feed lines, industrial process piping, water treatment systems, and laboratories. The FPT x FPT end configuration allows for connection to male-threaded pipe or fittings on both sides. At 2 inches, the fitting accommodates standard 2-inch Schedule 80 pipe runs in both residential and light commercial or industrial contexts.

Key Features

• PVDF construction provides excellent resistance to acids, bases, and oxidizing agents
• Schedule 80 rated for higher pressure service compared to Schedule 40 fittings
• FPT x FPT end connections accept standard male-threaded pipe on both ends
• 2-inch fitting size suits common industrial and process piping runs
• Lightweight thermoplastic construction resists corrosion and chemical degradation

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-inch Schedule 80 PVDF thermoplastic piping systems with female pipe thread end requirements.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter familiar with thermoplastic threaded fittings. Shut off system pressure and drain lines before removing or installing any fitting. Use PTFE thread tape or a compatible thread sealant rated for PVDF and the fluid being conveyed. Do not over-torque threaded connections, as PVDF threads can crack under excessive force; follow the fitting manufacturer's general guidelines for plastic-threaded joint assembly.
