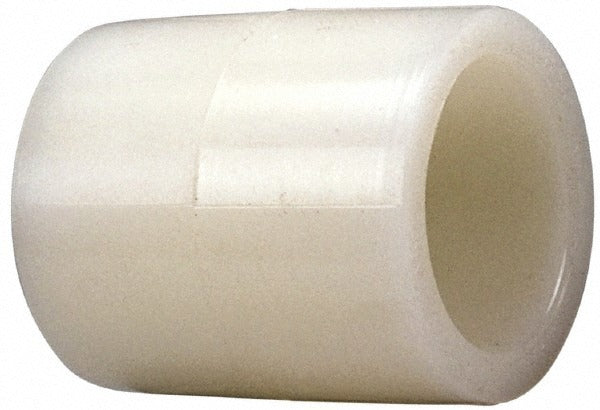

Nibco CE00150 Pvdf Socket Coupling 1-1/2 in Sch 80

Product Description

The NIBCO CE00150 is a Schedule 80 PVDF socket coupling designed for joining 1-1/2 inch plastic piping systems where chemical resistance and pressure performance are required. Constructed from polyvinylidene fluoride (PVDF), this coupling handles aggressive fluid transfer applications that exceed the capabilities of standard PVC or CPVC fittings. The end connections are configured Slip x SR FIPT, allowing one socket-style solvent-weld connection and one female iron pipe thread engagement. Licensed plumbers and industrial pipe fitters install this fitting in chemical processing, high-purity fluid handling, and industrial process piping systems.

This coupling is suited for Schedule 80 plastic piping systems operating in corrosive or high-purity environments. PVDF is commonly specified in semiconductor fabrication, chemical distribution, water treatment, and laboratory plumbing where resistance to halogens, strong acids, and solvents is a priority. The 1-1/2 inch size fits mid-range line sizes common in both light industrial and commercial mechanical systems. This fitting is sold individually.

Key Features

• PVDF construction provides superior resistance to aggressive chemicals, halogens, and high-purity fluid environments
• Schedule 80 pressure rating for higher-pressure plastic piping applications
• Slip x SR FIPT end connections allow solvent-weld on one side and threaded engagement on the other
• 1-1/2 inch fitting size fits standard Schedule 80 plastic pipe of the same nominal diameter
• Low contamination profile makes PVDF appropriate for high-purity and ultrapure fluid systems

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/2 inch Schedule 80 PVDF plastic piping systems with Slip x SR FIPT end connection requirements.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipe fitter familiar with Schedule 80 thermoplastic piping systems. Shut off all flow and depressurize the line before cutting into any active system. Solvent-weld connections require an appropriate PVDF cement and primer rated for the fluid service — standard PVC or CPVC cements are not compatible with PVDF. Threaded connections must be made using thread sealant compatible with PVDF and the process fluid; follow IPC or applicable local plumbing code for plastic-threaded joint requirements.
