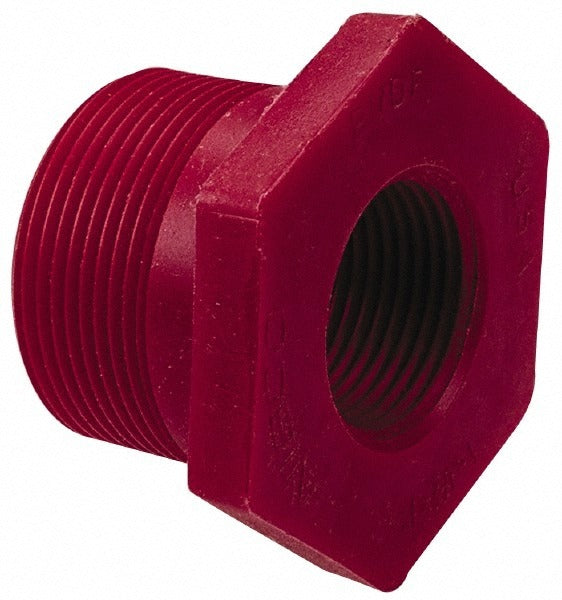

Nibco CD03350 Pvdf Reducer Bushing 1-1/2x1 in Sch 80

Product Description

The NIBCO CD03350 is a flush threaded reducer bushing manufactured from PVDF (polyvinylidene fluoride) plastic, designed to reduce a 1-1/2-inch female threaded port down to a 1-inch male threaded connection. It carries a Schedule 80 pressure rating, making it suitable for demanding industrial and chemical process piping applications. End connections are MIPT on the male end and FIPT on the female end. The red color coding identifies this as a PVDF fitting at a glance on the job site. Plumbers and pipefitters working with corrosion-resistant thermoplastic systems are the typical installers for this type of component.

This bushing is used in chemical process lines, ultrapure water systems, industrial fluid handling, and other applications where metal fittings would be vulnerable to chemical attack or corrosion. PVDF offers excellent resistance to a wide range of acids, bases, and solvents, making this fitting well suited for aggressive media. It is appropriate for both commercial and light industrial installations where Schedule 80 plastic piping is specified. The flush-style design seats flush within the receiving fitting, keeping the installed profile compact.

Key Features

• PVDF construction provides superior chemical and corrosion resistance for aggressive fluid service
• Schedule 80 pressure rating suitable for higher-pressure thermoplastic piping systems
• Flush reducer bushing profile keeps installed assembly compact
• MIPT x FIPT end connections allow direct threaded installation without additional adapters
• Red color coding provides fast visual identification of PVDF material on the job site
• 1-1/2 x 1 inch size accommodates common pipe reduction requirements in process and industrial plumbing

Compatibility

Designed as an OEM-style replacement or new-installation component for Schedule 80 PVDF threaded piping systems using 1-1/2-inch female threaded ports reduced to 1-inch male threaded connections.

Installation Notes

Installation of thermoplastic threaded fittings should be performed by a licensed plumber or qualified pipefitter in accordance with applicable plumbing codes. Depressurize and drain the piping system completely before removing or installing any fitting. Use PTFE thread tape rated for PVDF and plastic fittings — do not use pipe dope compounds unless confirmed compatible with PVDF. Hand-tighten first, then advance no more than one to two turns with a strap wrench to avoid cracking the fitting body; do not use metal pipe wrenches directly on PVDF.
