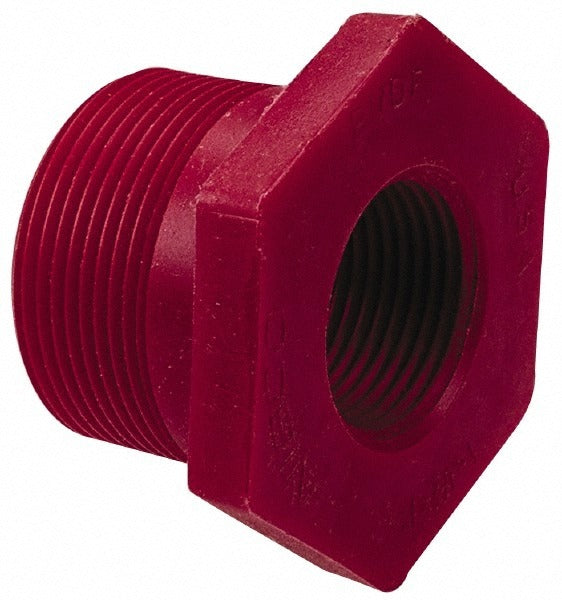

Nibco CD03290 Pvdf Reducer Bushing 1x1/2 in Sch 80 Mipt X Fipt

Product Description

The NIBCO CD03290 is a Schedule 80 flush threaded reducer bushing manufactured from PVDF (polyvinylidene fluoride) plastic, designed for reducing a 1-inch female threaded port down to a 1/2-inch male threaded connection. It features MIPT x FIPT end connections and is color-coded red for easy identification in multi-line installations. Rated for a maximum working temperature of 280 degrees F, this bushing is suited for demanding chemical and high-purity fluid systems where standard PVC or CPVC materials may not be acceptable. Licensed plumbers and industrial pipefitters are the typical installers for this fitting.

This reducer bushing is used in Schedule 80 thermoplastic piping systems handling corrosive chemicals, ultrapure water, or aggressive fluids in industrial, laboratory, semiconductor fabrication, and chemical processing environments. Its PVDF construction provides superior resistance to acids, bases, and many solvents. The flush-style design keeps the bushing seated squarely within the female fitting bore, reducing turbulence and maintaining system integrity in both horizontal and vertical pipe runs.

Key Features

• PVDF construction provides excellent chemical and thermal resistance up to 280 degrees F
• Schedule 80 wall thickness for higher pressure ratings in thermoplastic piping systems
• Flush threaded reducer bushing design minimizes flow restriction and turbulence
• MIPT x FIPT end connections for straightforward threaded assembly
• Red color coding for quick identification in multi-material piping installations
• Meets ASTM D3222 standard for PVDF plastic pipe fittings

Compatibility

Designed as an OEM-style replacement or direct-install fitting for Schedule 80 PVDF thermoplastic piping systems using 1-inch female threaded and 1/2-inch male threaded connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable plumbing codes, including IPC references for plastic piping systems. Shut off and depressurize the system fully before removing or installing any threaded fittings. PVDF threaded fittings should be assembled hand-tight and then turned an additional one to two turns using a strap wrench — do not use metal pipe wrenches directly on the fitting body, as overtightening can crack the threads. PTFE thread tape is the standard thread sealant for PVDF threaded connections; avoid pipe dopes or solvents not rated for use with PVDF.
