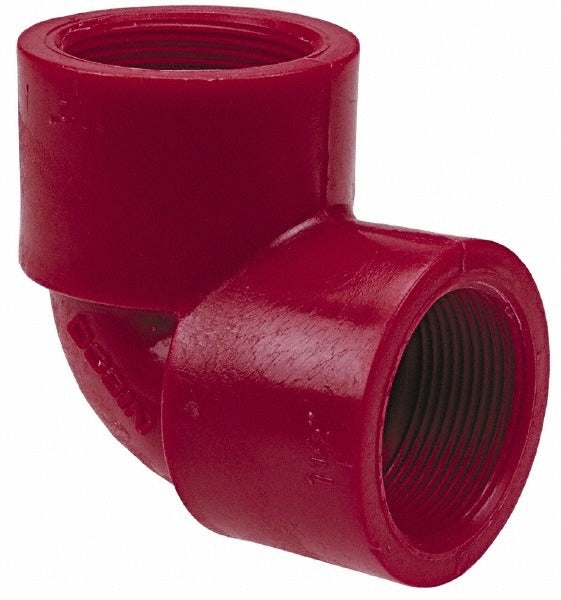

Nibco CD01600 Pvdf 90 Elbow 1 Inch Schedule 80 Fipt

Product Description

The NIBCO CD01600 is a 1-inch Schedule 80 PVDF (polyvinylidene fluoride) 90-degree elbow fitting designed for demanding industrial and chemical piping systems. PVDF is a high-purity, chemically resistant thermoplastic rated for use with aggressive fluids, making this fitting a reliable choice where metal or standard PVC fittings are unsuitable. The female iron pipe thread (FIPT) connections on both ends allow threaded assembly without solvent cement, simplifying installation and future disassembly. At 0.319 pounds, the fitting is compact and lightweight while maintaining Schedule 80 wall thickness for elevated pressure ratings. Licensed plumbers and industrial pipefitters are the primary installers of this component.

This elbow is suited for residential and commercial piping applications involving corrosive chemicals, high-purity water systems, and industrial process lines where PVDF material compatibility is required. The Schedule 80 wall thickness provides additional pressure capability compared to Schedule 40 fittings, making it appropriate for pressurized systems in chemical processing, semiconductor fabrication water loops, and similar environments. The red color identifies PVDF material per industry convention, aiding in quick visual identification during inspection and maintenance.

Key Features

• PVDF construction offers excellent resistance to a broad range of corrosive chemicals and high-purity fluid compatibility
• Schedule 80 wall thickness provides increased pressure capacity compared to Schedule 40 fittings
• FIPT x FIPT end connections on both ends allow threaded makeup without solvent cement
• 90-degree elbow geometry for directional changes in piping runs
• Red color coding for quick visual identification of PVDF material in multi-material piping systems
• Meets ASTM D3222 standard for PVDF materials

Compatibility

Designed as an OEM-style threaded fitting for 1-inch Schedule 80 PVDF piping systems using female iron pipe thread connections. Consult system design documentation and chemical compatibility charts to confirm suitability for specific fluid service.

Installation Notes

Installation should be performed by a licensed plumber or qualified industrial pipefitter in accordance with applicable plumbing codes such as the IPC. De-pressurize and drain the system completely before removing or installing any threaded fittings. Use PTFE thread tape or a PVDF-compatible thread sealant rated for the service fluid — do not use sealants that can degrade PVDF or contaminate high-purity systems. Avoid overtightening FIPT connections, as excessive torque can crack thermoplastic fittings.
