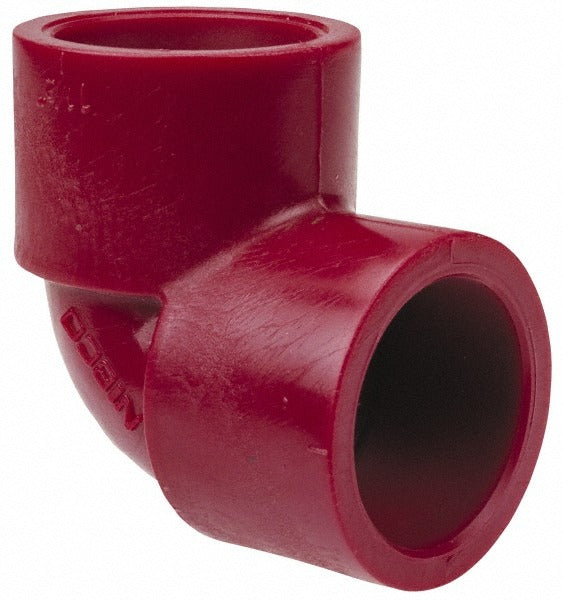

Nibco CD01350 Pvdf 90 Elbow 1 in Sch 80

Product Description

The NIBCO CD01350 is a 1-inch Schedule 80 90-degree elbow fitting manufactured from PVDF (polyvinylidene fluoride), a high-performance thermoplastic suited for aggressive chemical and high-purity fluid handling systems. End connections are Slip x SR FIPT (slip socket by short-run female iron pipe thread), allowing integration with both solvent-welded and threaded piping. The fitting is color-coded red for quick identification in multi-line installations. At 0.279 pounds, it is lightweight while offering the pressure and chemical resistance expected of Schedule 80 PVDF construction. Licensed plumbers and industrial piping contractors are the primary installers.

This elbow is intended for use in industrial, commercial, and process piping systems where chemical resistance, purity, and Schedule 80 pressure ratings are required. Typical applications include chemical transfer lines, ultrapure water systems, semiconductor fabrication, laboratory plumbing, and other installations where standard PVC or CPVC fittings are not chemically compatible. The Slip x SR FIPT configuration suits transitions between solvent-welded pipe runs and threaded system components or instrumentation ports.

Key Features

• PVDF construction offers exceptional resistance to acids, bases, and solvents
• Schedule 80 wall thickness for higher pressure ratings compared to Schedule 40
• 90-degree elbow geometry for direction changes in tight or structured piping layouts
• Slip x SR FIPT end connections support both solvent-cement and threaded assembly
• Red color coding for fast visual identification in multi-fluid or multi-line systems
• Lightweight at 0.279 pounds, reducing load on support hangers

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-inch Schedule 80 PVDF piping systems using solvent-weld and threaded connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified piping professional familiar with thermoplastic piping systems. Depressurize and drain the line completely before cutting or removing any existing fittings. Use only PVDF-compatible solvent cement on the slip socket end and appropriate thread sealant rated for PVDF on the FIPT connection. Follow local plumbing codes and the manufacturer joining instructions for solvent-welding cure times before returning the system to service.
