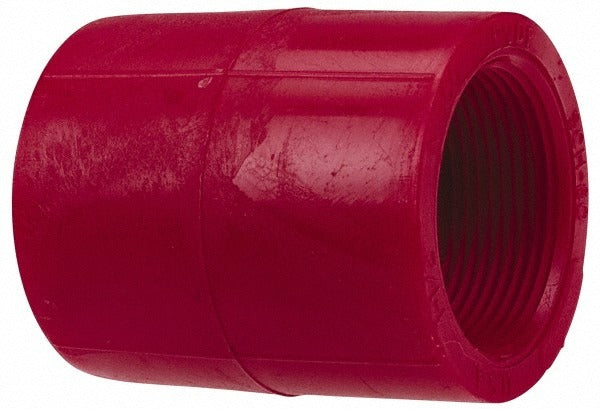

Nibco CD00700 Pvdf Adapter Coupling 2 in Sch 80 Fpt

Product Description

The NIBCO CD00700 is a 2-inch PVDF plastic adapter coupling rated for Schedule 80 service, designed to connect threaded piping systems in demanding industrial and chemical process applications. PVDF (polyvinylidene fluoride) offers excellent resistance to corrosive chemicals, making this fitting a reliable choice where standard thermoplastic fittings are inadequate. The coupling features female pipe thread (FPT) connections on both ends and is identified by its red color coding standard to PVDF fittings. Licensed plumbers and pipefitters install this component in high-purity, chemical handling, and industrial fluid systems.

This adapter coupling is suited for Schedule 80 PVDF piping systems encountered in chemical processing plants, semiconductor facilities, water treatment installations, and similar environments where corrosion resistance and purity are required. The FPT x FPT end connections allow direct threaded engagement with compatible male-threaded pipe or fittings. The 2-inch size fits mid-range process line installations where flow capacity and chemical compatibility are both critical considerations.

Key Features

• PVDF construction provides high chemical resistance for aggressive fluid handling
• Schedule 80 pressure rating for heavy-duty service applications
• FPT x FPT end connections for straightforward threaded assembly
• Red color coding identifies PVDF material per industry convention
• 2-inch fitting size for mid-range process and industrial piping lines

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 PVDF threaded piping systems with 2-inch female pipe thread connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter familiar with thermoplastic piping systems. Shut off and depressurize the line completely before disassembling any fittings. Use PTFE thread tape or a compatible thread sealant rated for PVDF and the specific media being conveyed. Do not over-torque PVDF threaded fittings, as the material can crack under excessive mechanical stress.
