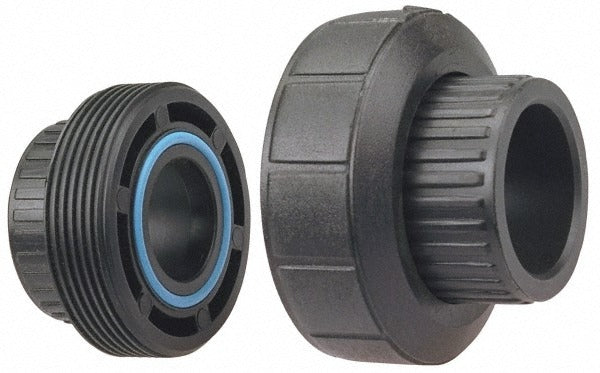

Nibco CC08600 Polypropylene Socket Union 1-1/2 in Sch 80

Product Description

The NIBCO CC08600 is a Schedule 80 polypropylene socket union designed for 1-1/2 inch pipe systems requiring a removable, pressure-rated connection point. Built from black polypropylene, this union offers solid chemical resistance for drainage, waste, and chemical-handling applications. The Slip x SR FIPT end configuration allows one side to solvent-weld to plain-end pipe while the other threads onto a female iron pipe thread fitting. Plumbers and pipefitters install this union where future disconnection of a pipe segment is anticipated without cutting the line.

This union is suited for residential and light commercial plumbing installations, particularly in chemical-resistant piping systems where polypropylene is specified over PVC or CPVC. The Schedule 80 wall thickness provides additional pressure capacity compared to Schedule 40, making it appropriate for pressurized cold- and ambient-temperature water or chemical service lines. It is commonly used in mechanical rooms, utility spaces, and industrial process piping where unions are required for serviceability of pumps, valves, and equipment.

Key Features

• Schedule 80 wall thickness for higher pressure ratings versus Schedule 40
• Polypropylene construction provides broad chemical resistance
• Slip x SR FIPT end connections allow solvent-weld on one side and threaded connection on the other
• Black color for UV inhibitor identification standard to polypropylene fittings
• Union design allows future disassembly without cutting the pipe

Compatibility

Designed as an OEM-style replacement and standard-fitment socket union for 1-1/2 inch Schedule 80 polypropylene piping systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off and depressurize the system completely before removing or installing any union. Use only solvent cement rated for polypropylene on the slip-end socket — standard PVC cement is not compatible with polypropylene. Hand-tighten the union nut first, then snug to seat; do not over-torque the threaded union nut, as polypropylene is susceptible to stress cracking from excessive force.
