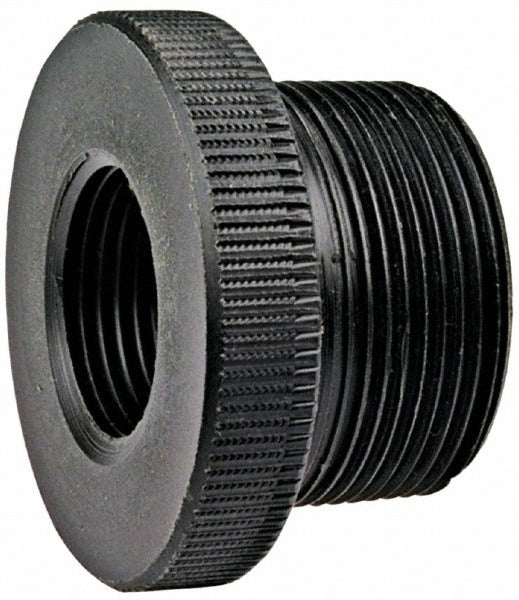

Nibco CC05200 Flush Reducer Bushing 3/4x1/2 in Sch 80

Product Description

The NIBCO CC05200 is a Schedule 80 flush reducer bushing designed to reduce a 3/4-inch male iron pipe thread (MIPT) connection down to a 1/2-inch female iron pipe thread (FIPT). Molded from black polypropylene, it handles a maximum working temperature of 180 degrees F, making it suitable for a range of industrial and commercial piping applications. Plumbers and pipefitters install this fitting where a threaded line must transition to a smaller diameter without a coupling or nipple between fittings. The Schedule 80 wall thickness provides additional pressure resistance compared to Schedule 40.

This bushing is used in Schedule 80 thermoplastic piping systems where flow reduction or branch line sizing changes are needed. Common applications include chemical distribution lines, water treatment systems, and industrial process piping where corrosion resistance and temperature tolerance are priorities. The polypropylene construction resists many acids, bases, and organic solvents, making it a practical choice over metal bushings in corrosive environments.

Key Features

• Flush reducer bushing profile keeps the transition compact within the fitting run
• Schedule 80 polypropylene construction for increased wall thickness and pressure handling
• Black polypropylene material resists corrosion and many chemical media
• MIPT x FIPT end connections for direct threaded installation without additional adapters
• Rated to 180 degrees F maximum working temperature
• Meets ASTM D4101 standard for polypropylene plastic pipe fittings

Compatibility

Designed as an OEM-style replacement or new-installation component for Schedule 80 thermoplastic threaded piping systems using 3/4-inch to 1/2-inch reducer connections.

Installation Notes

Installation is performed by a licensed plumber or pipefitter. Depressurize and drain the line completely before removing any existing fitting. Apply thread sealant rated for use with polypropylene and thermoplastic fittings — standard pipe dope or PTFE tape compatible with plastics is typical. Do not overtighten threaded plastic fittings; hand-tight plus one to two turns with a strap wrench is the general practice to avoid cracking the fitting body.
