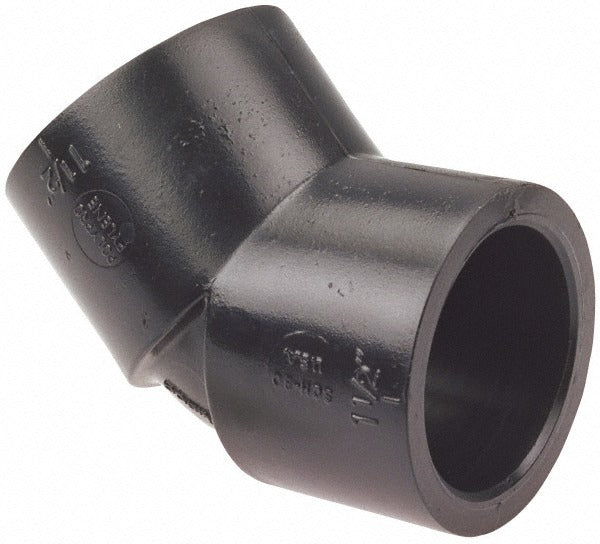

Nibco CC01300 45 Elbow 1-1/2 in Sch 80 Polypropylene

Product Description

The NIBCO CC01300 is a Schedule 80 polypropylene 45-degree elbow fitting designed for plastic piping systems in industrial, chemical, and plumbing applications. Sized at 1-1/2 inches with Slip x SR FIPT end connections, this black polypropylene fitting handles a working temperature range of 45 degrees F to 180 degrees F. Its Schedule 80 wall thickness provides greater pressure resistance compared to Schedule 40, making it appropriate for more demanding service conditions. Weighing 0.25 pounds, the CC01300 is a single-piece fitting conforming to ASTM D4101 standards. Licensed plumbers and pipefitters typically install this fitting in corrosive-fluid or chemical-handling piping systems where polypropylene is specified.

This fitting is suited for residential and light commercial piping systems where polypropylene is required for chemical resistance or temperature compatibility. The Slip x SR FIPT connection style allows one socket solvent-weld end and one standard female iron pipe thread end, supporting transitions between solvent-weld plastic pipe runs and threaded connections. Typical install scenarios include chemical drainage lines, laboratory piping, and industrial process systems where standard PVC or CPVC is not appropriate for the service fluid.

Key Features

• Schedule 80 polypropylene construction for higher pressure ratings versus Schedule 40
• Slip x SR FIPT end connections for versatile solvent-weld to threaded transitions
• Rated for service from 45 degrees F to 180 degrees F
• Black color polypropylene material for UV and chemical resistance in appropriate applications
• Conforms to ASTM D4101 standard for polypropylene plastic pipe fittings
• 1-1/2 inch fitting size, single-piece unit weight of 0.25 pounds

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/2 inch Schedule 80 polypropylene piping systems using solvent-weld socket and female iron pipe thread connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and ASTM guidelines. Shut off system flow and depressurize the line before cutting into an existing piping system. The slip end requires compatible polypropylene solvent cement rated for Schedule 80 fittings; do not substitute PVC or CPVC cement. The SR FIPT threaded end should be made up with appropriate thread sealant rated for polypropylene and the service fluid.
