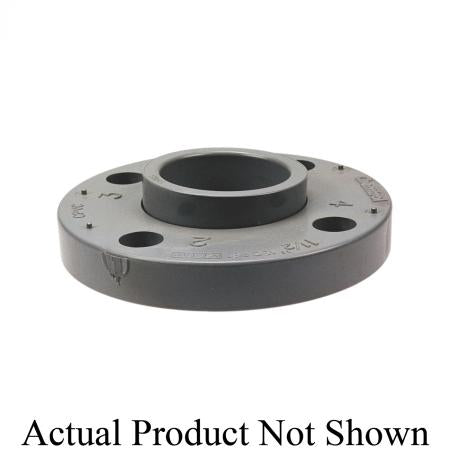

NIBCO CB19727 Flange 2-1/2 Inch CPVC S80 Socket 2PC Vanstone

Product Description

The NIBCO CB19727 is a 2-1/2 inch Vanstone flange, crafted from robust CPVC and adhering to SCH 80 specifications. Designed for industrial and high-demand environments, this two-piece flange features a socket connection and is suitable for chemical processing and water treatment systems.

• Durable CPVC construction withstands demanding uses.
• Compatible with ANSI B16.5 Class 150 standards.
• Designed for chemical resistance and high temperature up to 210 degrees Fahrenheit.

Product Highlights

Each unit is meticulously designed with a stress rating of 2000 psi at 73 degrees Fahrenheit, ensuring reliability and longevity in harsh conditions. The Van Stone two-piece construction allows for easy installation and maintenance.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: 5151-A
• Material: CPVC
• Connection Type: Socket
• Domestic/Import: Domestic

Technical Specifications

• Nominal Size: 2-1/2 inches
• Inside Diameter: 4.11 inches
• Outside Diameter: 6.98 inches
• Thickness: 1.93 inches
• Pressure Class: 150 lb
• Schedule Rating: SCH 80/XH
• Temperature Rating: 210 degrees Fahrenheit
