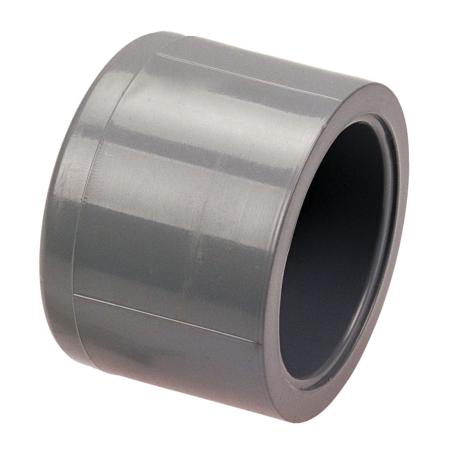

NIBCO CB09600 CPVC Cap 3/4 Inch SCH 80 Socket 1847-007

Product Description

The NIBCO CB09600 is a CPVC cap designed for robust handling of pressurized systems. This cap features a socket connection and is used primarily to close off the end of a line, providing a reliable seal. Manufactured by NIBCO, a trusted name in the industry, the cap is utilized in applications such as chemical processing and industrial plating.

• Robust CPVC construction suitable for high-temperature applications up to 210 degrees Fahrenheit.
• Designed to withstand design stress of 2000 psi at 73 degrees Fahrenheit.
• Fully certified with ASTM F439 and NSF/ANSI 14/61 standards.

Product Highlights

Simple installation with female socket end style. Essential for chilled water distribution, deionized water lines, and chemical drainage systems.

Product Information

Standard Information

• Brand: NIBCO
• MPN: CB09600
• Material: CPVC
• Connection Type: Female Socket
• Size: 3/4 inch
• Schedule Rating: SCH 80

Technical Specifications

• Maximum Temperature: 210 degrees Fahrenheit
• Design Pressure: 2000 psi at 73 degrees Fahrenheit
• Product Series: 5117
• Standard Approvals: ASTM F439, NSF/ANSI 14/61
