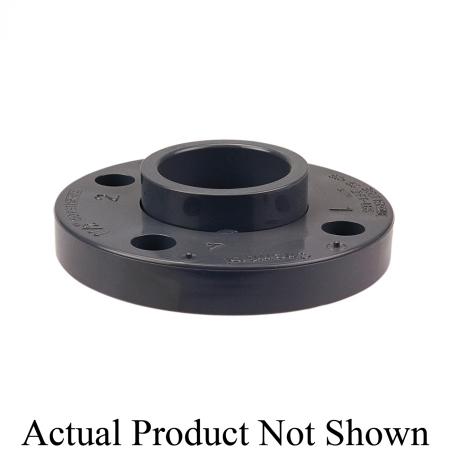

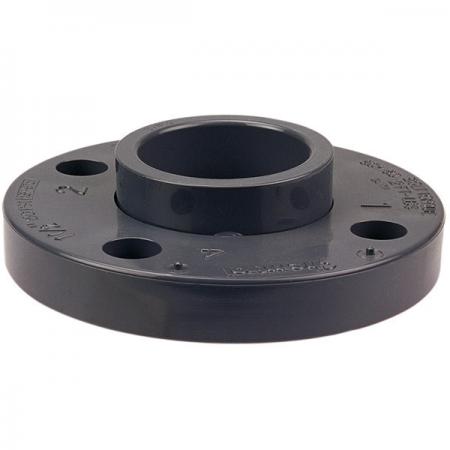

NIBCO CA25450 4551A 1 SOC VNST FLG PVC 80

Product Description

NIBCO CA25450 is a two-piece van stone flange fitting, ideal for various piping systems. This product features a nominal size of one inch with an inside diameter of two point zero four inches. The outside diameter is four and one-quarter inches, and it has a thickness of zero point fifty-six inches. This fitting is constructed from durable PVC and is designed for socket and flanged connections.

• Ideal for chemical processing and chilled water distribution
• Meets ANSI B16.5 Class 150 standards
• Designed for use in various industrial applications

Product Highlights

This van stone flange is suitable for both deionized water lines and wastewater systems. It should not be used with compressed air or gases.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• UOM: EA

Technical Specifications

• Nominal Size: 1 in
• Inside Diameter: 2.04 in
• Outside Diameter: 4-1/4 in
• Thickness: 0.56 in
• Material: PVC
• Pressure Class: 150 lb
• Schedule Rating: SCH 80/XH
• Temperature Rating: 140 deg F Service
