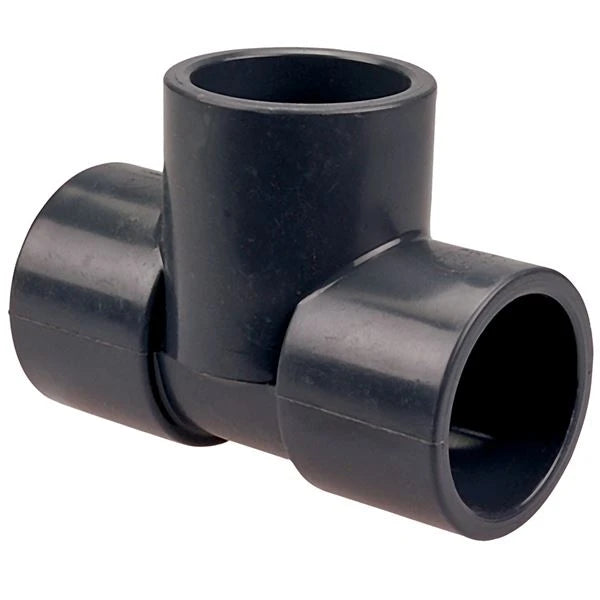

Nibco ca08700 4511 4511R Socket Reducing Tee S X S X S 2 X 2 X 3/4 Inches Pvc Schedule 80

Product Description

The NIBCO ca08700 is a Schedule 80 PVC reducing socket tee designed for use in pressure piping systems where a branch connection of a smaller diameter is needed. This fitting connects a 3/4 inch branch outlet to a 2 inch run line, using a socket by socket by socket (S x S x S) connection type. It is manufactured from rigid PVC material and finished in dark grey, which is the standard color identifier for Schedule 80 PVC fittings. Schedule 80 PVC carries a thicker wall than Schedule 40, making it suitable for higher-pressure applications including industrial process piping, chemical handling, irrigation systems, and commercial plumbing. The ca08700 corresponds to the NIBCO 4511 and 4511R series of reducing socket tees. These fittings are solvent-welded into place, creating a permanent, leak-resistant joint that plumbers and pipefitters rely on in both above-ground and below-ground installations. The reducing outlet design allows a single fitting to transition from a 2 inch main line down to a 3/4 inch branch without the need for additional reducers or bushings, saving labor time and material cost on the job. This fitting is NSF/ANSI 372 compliant and meets low-lead requirements, making it approved for use in potable water systems. At 4.42 inches in length, 3.81 inches in width, and 3.02 inches in height, it is compact and easy to fit into tight pipe runs. Weighing 0.643 pounds, it is light enough to handle easily during installation. NIBCO is a trusted name in the trade for PVC, CPVC, and copper fittings used across commercial, industrial, and residential piping applications.

• Schedule 80 PVC construction for high-pressure piping systems
• Reducing outlet connects 2 inch run to 3/4 inch branch in a single fitting
• NSF/ANSI 372 compliant and low-lead certified for potable water use

Product Highlights

The NIBCO ca08700 Schedule 80 PVC reducing socket tee provides a reliable, low-lead compliant branch connection for 2 inch by 3/4 inch piping configurations in commercial and industrial plumbing systems. Its solvent-weld socket design delivers a permanent, leak-resistant joint trusted by professional pipefitters and plumbers.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: ca08700

Technical Specifications

• Item Type: Reducing Tee
• Body Material: PVC
• Color: Dark Grey
• Connection Type: S x S x S
• Nominal Pipe Size: 2 inches x 2 inches x 3/4 inches
• Pipe Schedule: 80
• Type of Tee: Reducing Outlet
• Height: 3.02 inches
• Length: 4.42 inches
• Width: 3.81 inches
• Net Weight: 0.643 pounds
• Potable Water Compliance: NSF/ANSI 372 Low Lead Compliant
• Country of Origin: United States
