Nibco B305306 Class 125 Companion Flange C - Cast, 741

Product Description

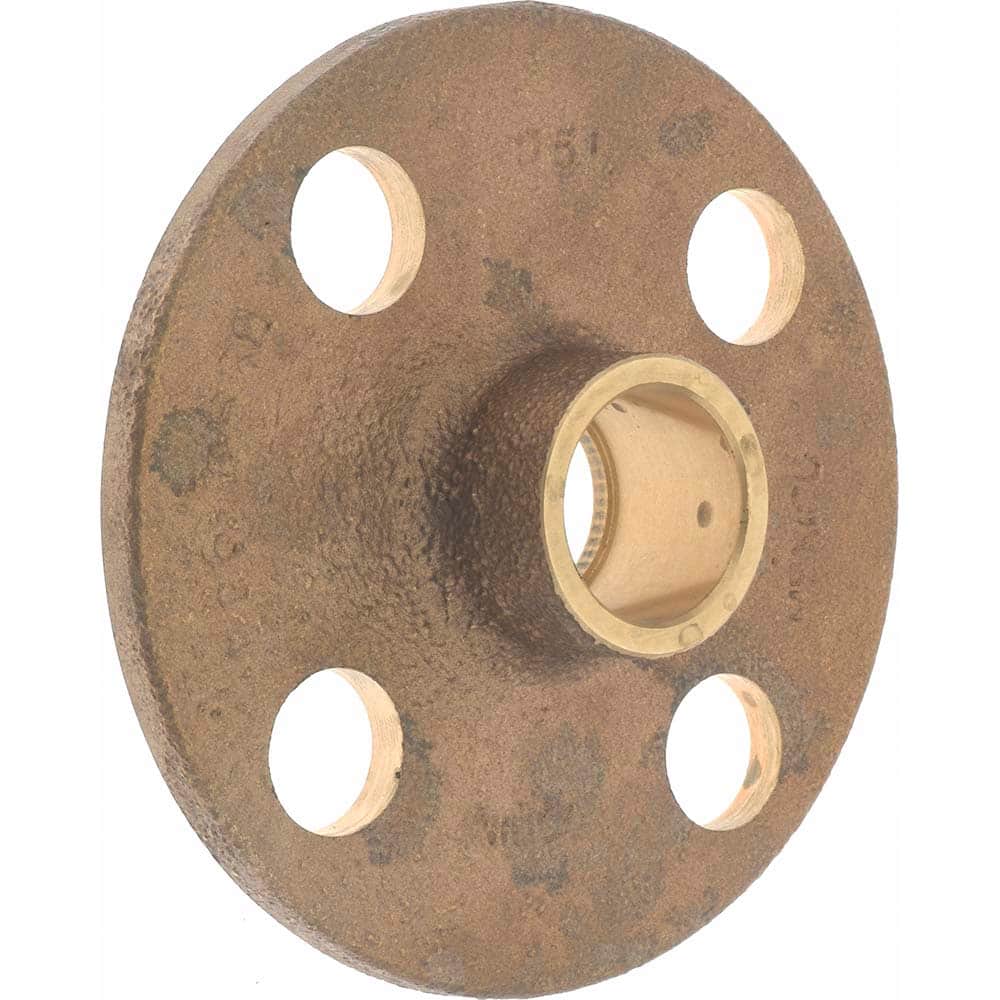

The NIBCO B305306 flange features a solder cup and flange face, providing a means for adapting a solder connection to a flange connection. It is manufactured in an ISO 9001 certified facility and backed by a 50-year limited warranty. This fitting is ideal for sustainable projects.

• Provides a means for adapting a solder connection to a flange connection
• Dezincification resistant
• Manufactured in an ISO 9001 certified facility

Product Highlights

The NIBCO flange adapts a solder connection to a flange connection and is ideal for sustainable projects.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: B305306
• Country of Origin: Import

Technical Specifications

• UPC Code: 039923356468
• All Type of Item: Fitting
• Description: 741 3/4 C CLASS 125 FLANGE CAST
• Type: Flange
• Connection Type: C x Flange
• Size: 3/4
• Material: Bronze
• Domestic/Import: Import
• Nominal Size: 3/4 In
• Outside Diameter: 3-7/8 in
• Pressure Class: 125 lb
• Series: 741
• Thickness: 1/8 in
• Part #: B305306
• Category: Pipe and Coupling
• Style: Companion
• End Connection: C
• Class: 125
• Standards: ASTM B584
