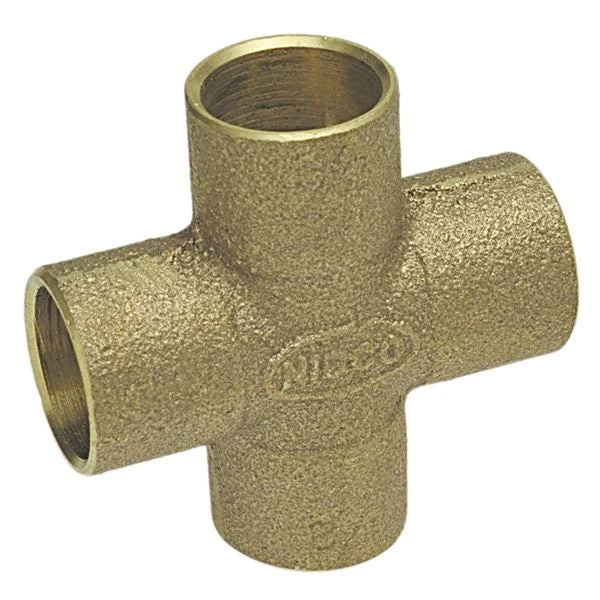

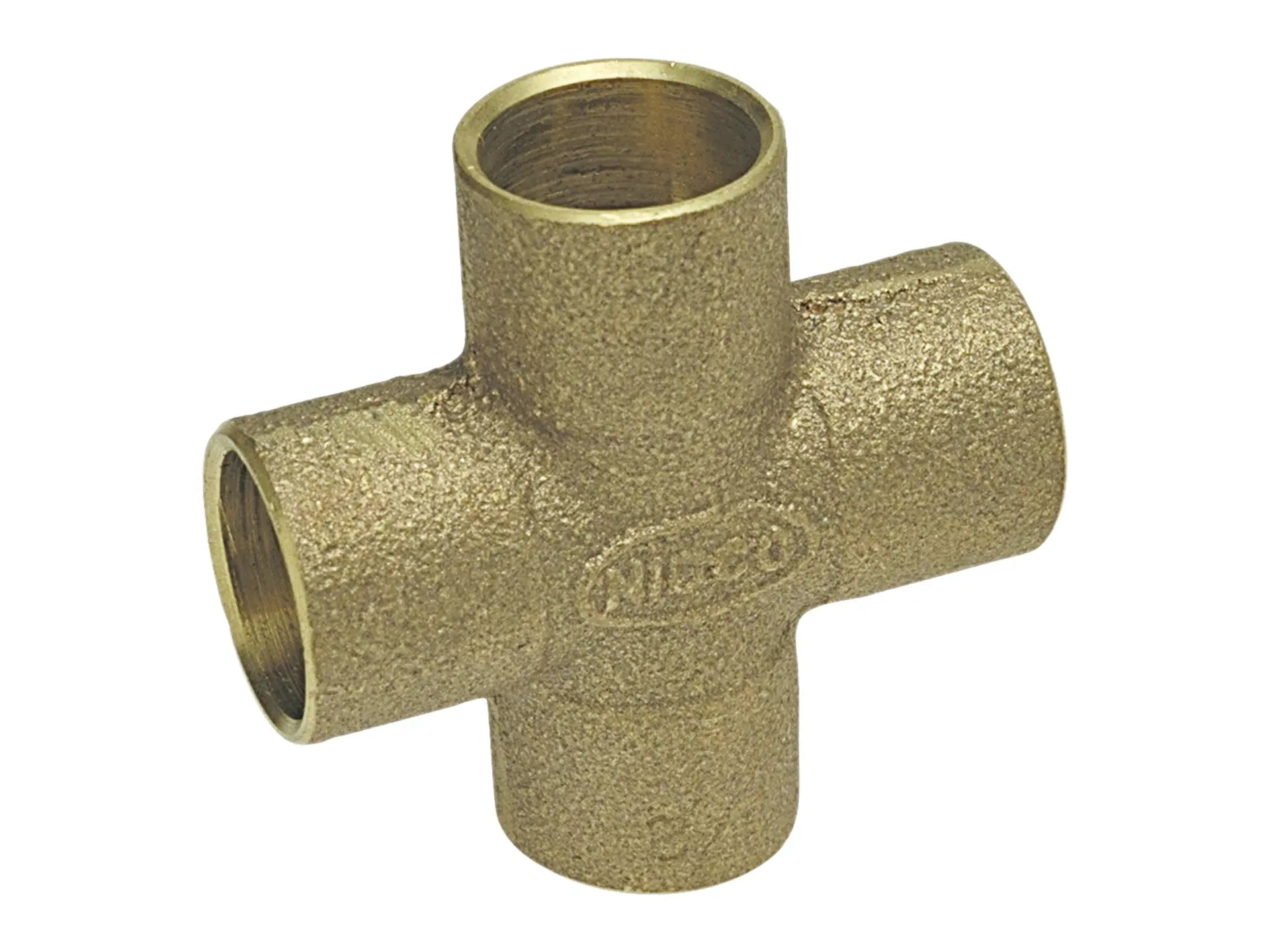

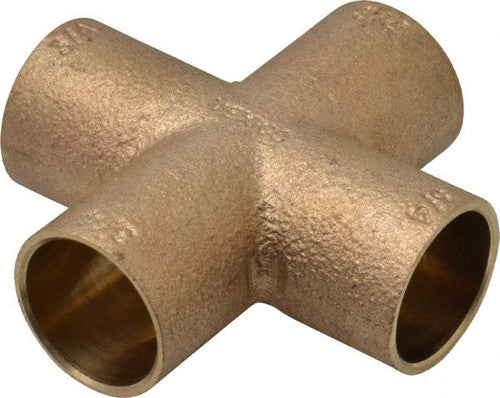

Nibco B270700 Cross C x C x C x C - Cast, 735 3/4 Inch

Product Description

The NIBCO B270700 cross features solder cups and provides a means for a connection to be made in a continuous pipe line, branching out in two directions. Suitable for plumbing applications, it is manufactured in an ISO 9001 certified facility. The fitting is backed by a 50-year limited warranty.

• Solder cups
• Provides a means for a connection to be made in continuous pipe line and branch out in two different directions
• Suitable for sustainable projects

Product Highlights

The NIBCO cross is dezincification resistant and made with material and workmanship per ASME B16.18.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: B270700
• Country of Origin: US

Technical Specifications

• UPC Code: 039923348470
• All Type of Item: Fitting
• Connection Type: C x C x C x C
• Size: 3/4"
• Description: 735 3/4 CXCXCXC CROSS CAST
• Type: Cross
• Material: Bronze Alloy
• Fitting Type: Cross
• Fitting Size: 3/4 in
• Style: Pressure Fitting
• End Connection: Female Soldered x Female Soldered x Female Soldered x Female Soldered
• Standards: ASME B16.18, ASTM B584
• Body Material: Bronze
• Height: 0.95"
• Length: 2.63"
• Nominal Pipe Size: 3/4 Inch x 3/4 Inch x 3/4 Inch x 3/4 Inch
• Width: 2.63"
• Potable Water Code: Not Ll Compliant Not Intend Potable
• Manufacturer: NIBCO
• Part Number: B270700
• Model: 735
• Domestic/Import: Import
• End Style: C x C x C x C
• Nominal Size: 3/4 in
• Series: 735
• Applicable Standard: ASME B16.18, ISO 9001
• Application: Residential and Commercial Plumbing
• Material Specification: ASTM B584
• Pressure Rating: 582 PSI at -20 to 100 Deg F
• Process: Cast
• Temperature Rating: -20 to 400 Deg F
