Nibco B06705L 90 deg drop elbow c x f - performance bronze™ 3/4 x 1/2 inch

Product Description

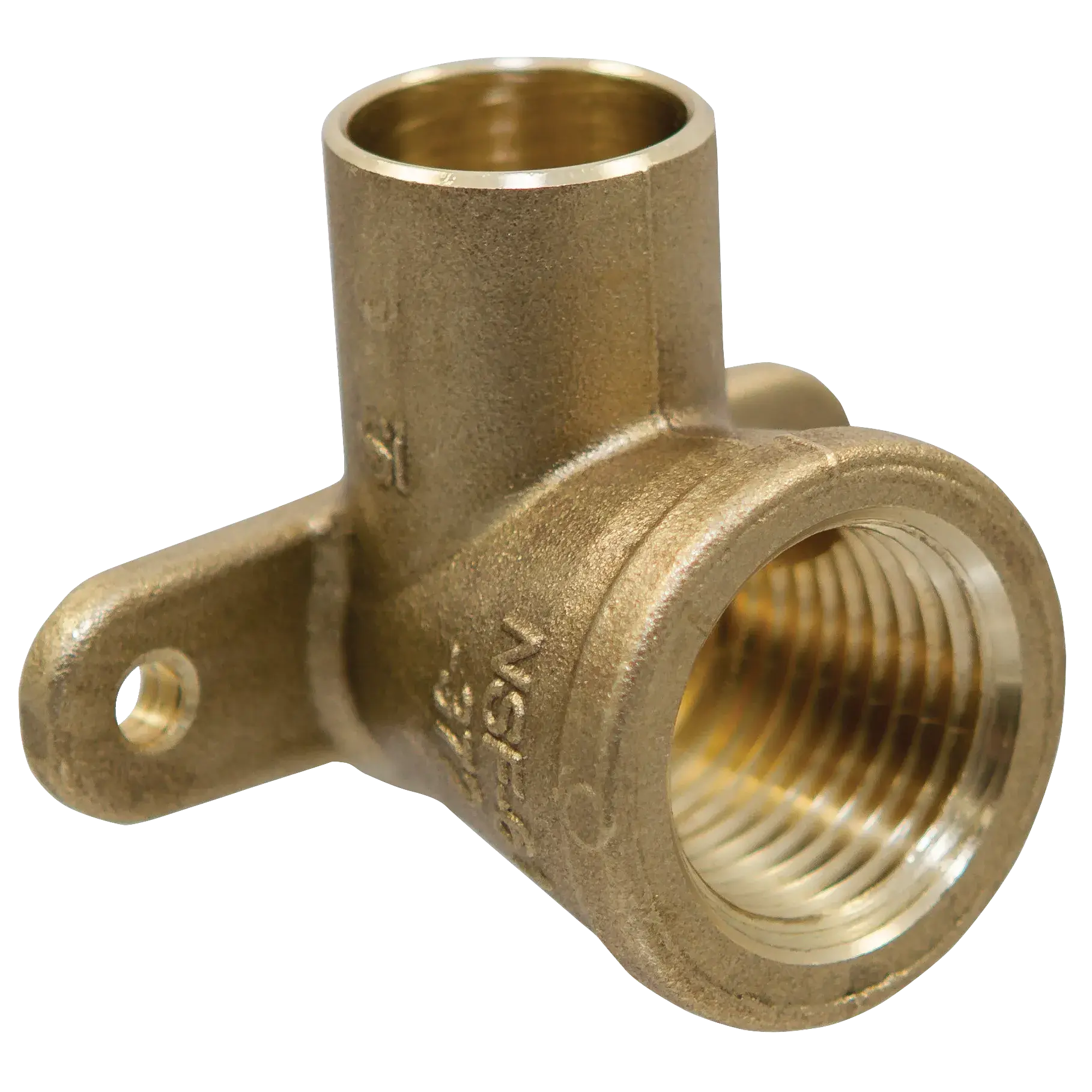

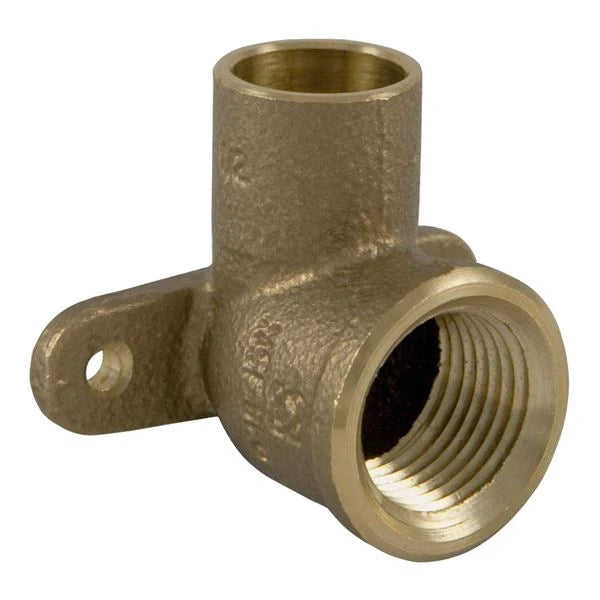

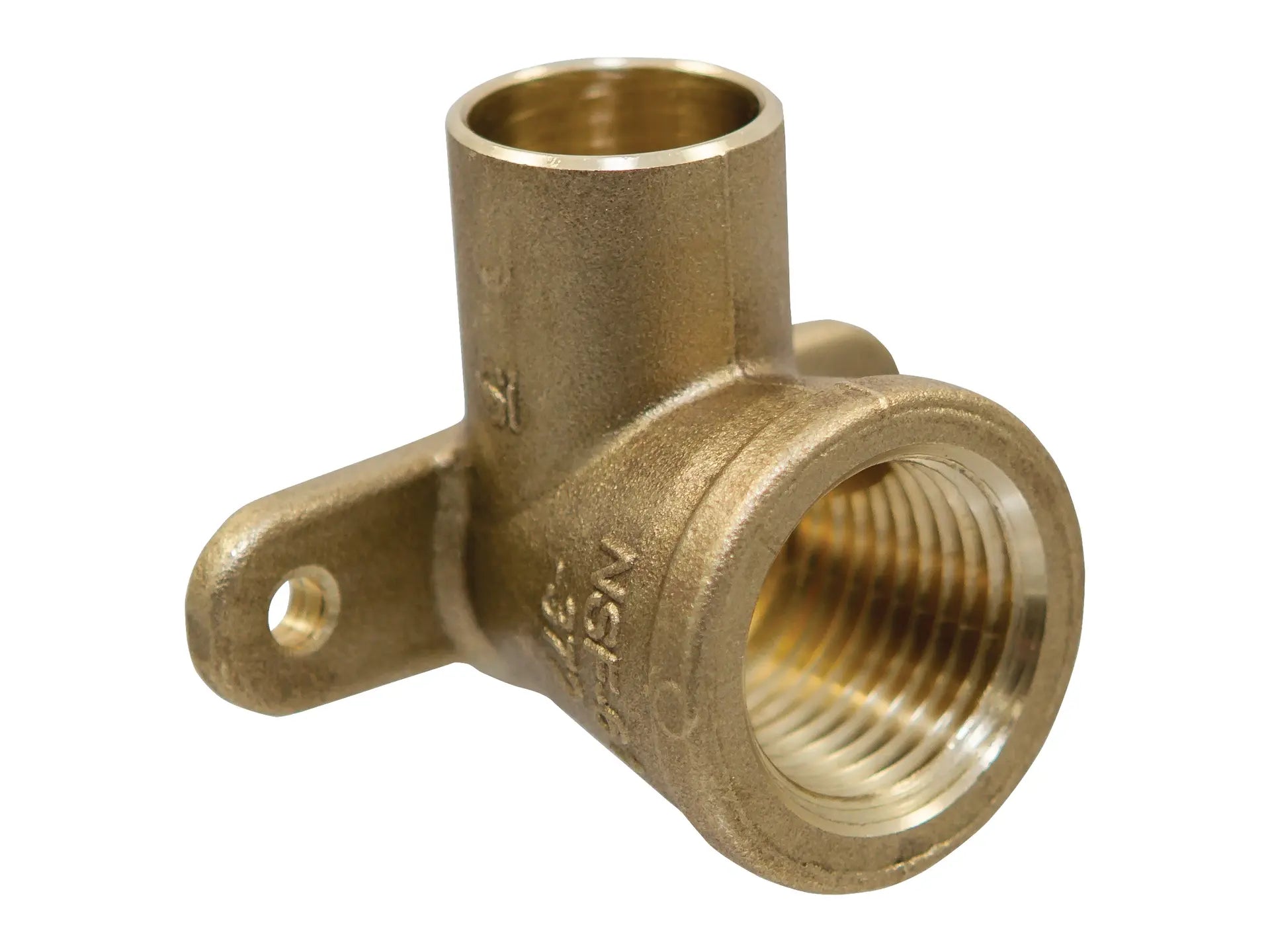

The NIBCO B06705L lead-free bronze solder pressure 90° drop elbow is used in residential and commercial plumbing applications. The fitting provides a means of changing the pipeline direction 90 degrees and adapting from a solder connection to a threaded connection. The ears allow the fitting to be secured to a wall support using a nail or screw.

• Lead-free
• Dezincification resistant
• Silicon Performance Bronze® alloy

Product Highlights

This elbow features a solder cup, female NPT threads, and mounting ears. It conforms to ASME B16.18 design standards and is certified to NSF/ANSI 61 and 372.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: B06705L
• Country of Origin: MX

Technical Specifications

• UPC Code: 039923299864
• All Type of Item: Fitting
• All Special Application: Lead-Free*
• Fitting Bend Angle: 90 Deg (1/4 Bend)
• Type: Elbow
• Connection Type: C x F (NPT)
• Size: 3/4 x 1/2
• Material: Lead-Free Bronze
• Manufacturer: NIBCO
• Part Number: B06705L
• Model: 707-3-5-LF
• Type of Fitting: Elbow
• Type Of Elbow: Reducing
• Nominal Pipe Size: 3/4" x 1/2"
• Potable Water Code: LL Compliant NSF/ANSI 372
• Body Material: Lead Free Bronze
• Item: Elbow
• Length: 1.87"
• Width: 1.82"
• Height: 1.45"
