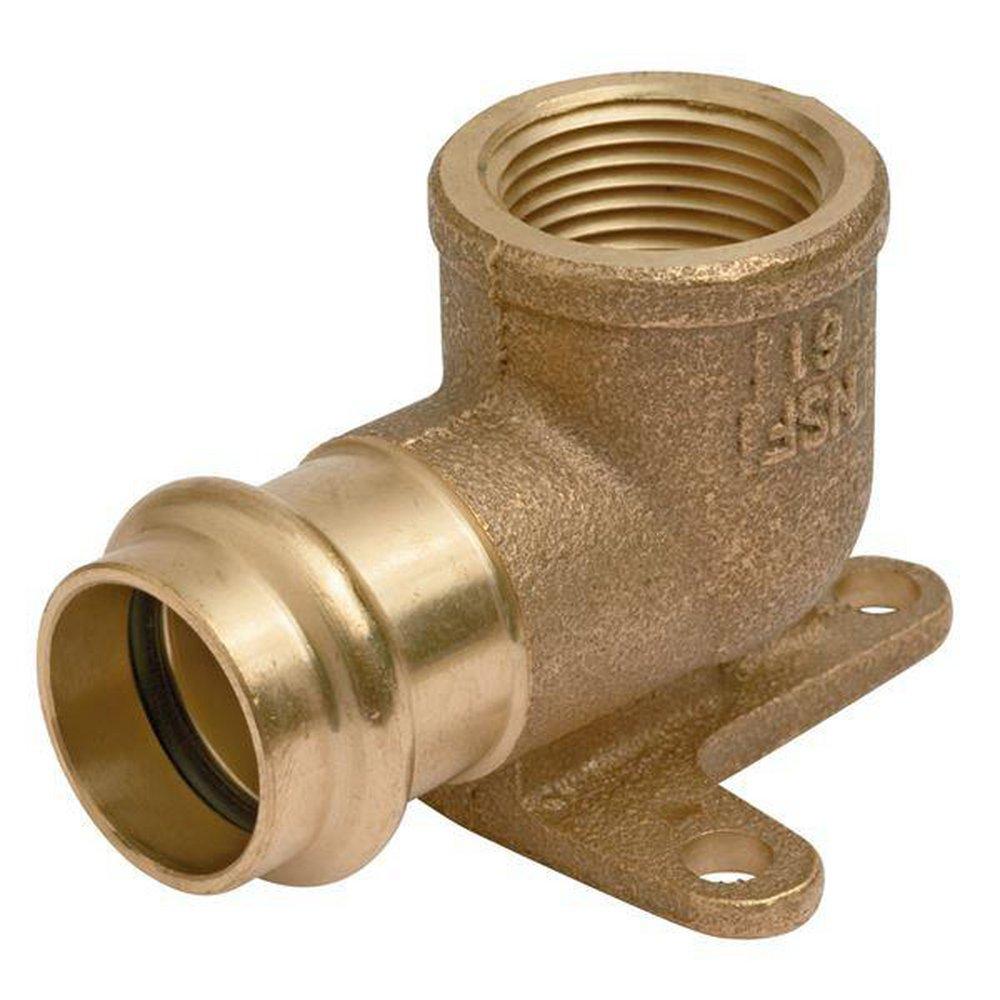

NIBCO B066850PC 1/2 in. Press x FNPT Cast Bronze 90 Degree Drop Elbow

Product Description

The NIBCO B066850PC is a 1/2 inch press x FNPT cast bronze 90-degree drop elbow designed for effective pipe fitting transitions. This fitting provides an essential method to change the direction of your pipe line efficiently. From copper to NPT connections, this elbow allows for a secure and leak-free installation.

• Size: 1/2 inch
• Pressure rating: 200 psi
• Temperature range: minus twenty degrees Fahrenheit to two hundred fifty degrees Fahrenheit

Product Highlights

This NIBCO fitting is dezincification resistant and manufactured from high-quality silicon bronze, ensuring long-lasting use in various applications.

Product Information

Standard Information

• Manufacturer: NIBCO
• Material: Silicon Bronze

Technical Specifications

• Connection Type: Press x FNPT
• Fitting Type: 90 Degree Elbow
• Nominal Size: 1/2 inch
• Operating Pressure: 200 psi
• Temperature Rating: -20 to 250 degrees Fahrenheit
• Method of Manufacture: Cast
• Approval Standards: NSF/ANSI 61, UPC Listed, CSA MSE 13
• Dezincification Resistance: Yes
