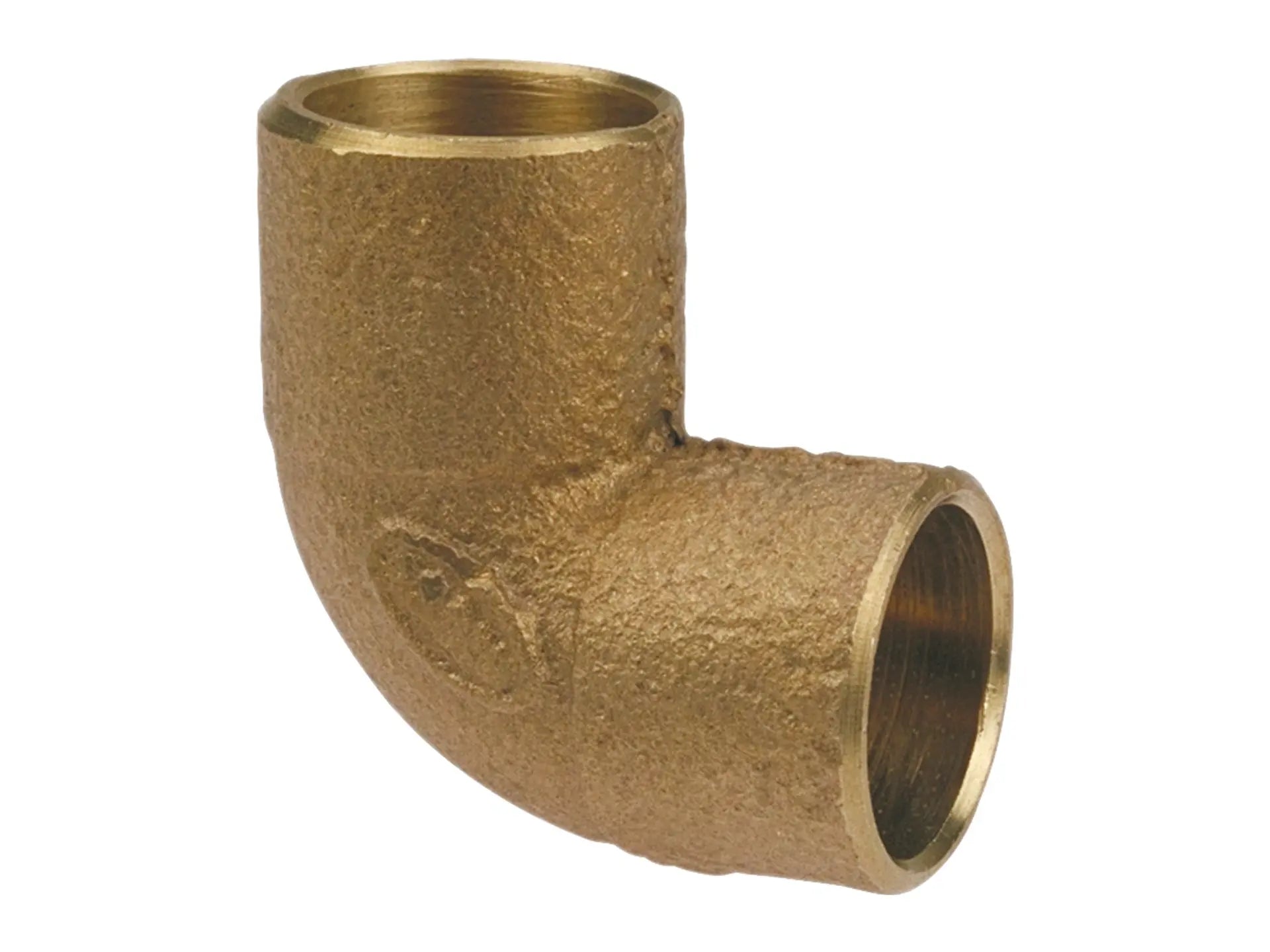

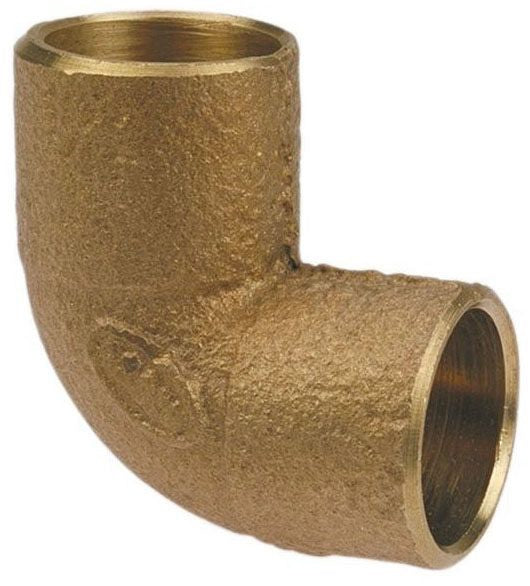

Nibco B056700 90° Elbow Close Rough C x C - Cast

Product Description

The NIBCO B056700 is a cast bronze solder pressure 90° close rough elbow used in residential and commercial plumbing. The 90-degree elbow features solder cups and a close rough radius, changing the pipeline direction 90 degrees when velocity is not a problem. It conforms to ASME B16.18 and ASTM B584 standards.

• Dezincification resistant
• ASTM B584 Alloy C84400
• Material and workmanship per ASME B16.18

Product Highlights

The NIBCO 90° elbow provides a means of changing the pipeline direction 90 degrees. It is used when velocity is not a problem.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: B056700
• Country of Origin: MX

Technical Specifications

• MPN: B056700
• Manufacturer Part Number: B056700
• UPC / GTIN: 039923352347
• Manufacturer: Nibco
• All Type of Item: Fitting
• Description: 707R 21/2X2 CXC 90 ELB CAST
• Fitting Bend Angle: 90 Deg (1/4 Bend)
• Type: Elbow
• Connection Type: C x C
• Size: 2 1/2 x 2
• Material: Bronze
• Angle: 90 Degree
• Applicable Standard: ASME B16.18, OSHA
• Application: Commercial, Residential
• End Connection: Female Soldered x Female Soldered
• Material Specification: ASTM B584
• Pressure Rating: 336 PSI at -20 to 100 Deg F
• Process: Cast
• Size A: 2-1/2 Inch
• Size B: 2 Inch
• Temperature Rating: -20 to 400 Deg F
• Type of Fitting: Elbow
• Type of Elbow: Reducing
• Nominal Pipe Size: 2-1/2" x 2"
• Length: 4.3"
• Width: 3.89"
• Height: 2.92"
• Fitting Type: 90 Deg Close Rough Elbow
• Style: Pressure Fitting
• UNSPSC Code: 40175305
