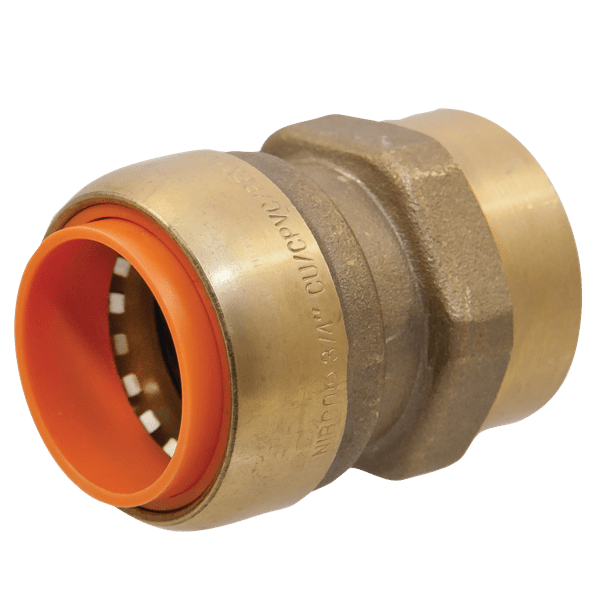

Nibco B024650PE 1/2 Inch Cts Push Fipt Female Adapter

Product Description

The NIBCO B024650PE is a 1/2 inch CTS push-to-connect by female iron pipe thread (FIPT) adapter designed for fast, reliable transitions in potable water and plumbing distribution systems. This lead-free fitting allows a push-to-connect CTS tube end to mate directly with a female-threaded port, eliminating the need for soldering or crimping tools at the connection point. It is suited for residential and light commercial plumbing work where copper tube size tubing meets threaded pipe components. Licensed plumbers and pipefitters are the primary installers of this type of fitting.

This adapter is used in residential and commercial water supply applications where a push-to-connect CTS tube must terminate at a threaded female port, such as at shutoff valves, fixture supplies, or manifold inlets. The lead-free construction meets safe drinking water requirements, making it appropriate for potable water systems. It is commonly installed in new construction, retrofit, and repair scenarios where reducing labor time at the connection is a priority.

Key Features

• Push-to-connect CTS inlet for tool-free tube insertion
• Female iron pipe thread (FIPT) outlet for threaded port connections
• Lead-free construction compliant with safe drinking water standards
• 1/2 inch CTS size for standard residential and light commercial supply lines
• Compact adapter profile for use in tight spaces

Compatibility

Designed as an OEM-style replacement or new-installation fitting compatible with standard 1/2 inch copper tube size push-to-connect systems terminating at female iron pipe thread ports.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the IPC. Shut off the water supply and relieve system pressure before installing or removing any push-to-connect fitting. Ensure the tube end is cut square, deburred, and fully inserted to the depth mark before pressurizing the system. Apply thread sealant or PTFE tape to the male threads mating with the FIPT outlet per standard practice.

Technical Specifications

• Connection Type: 1/2 inch CTS Push x FIPT (Female Iron Pipe Thread)
• Lead Free: Yes
• Order Increment: 1

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: B024650PE
