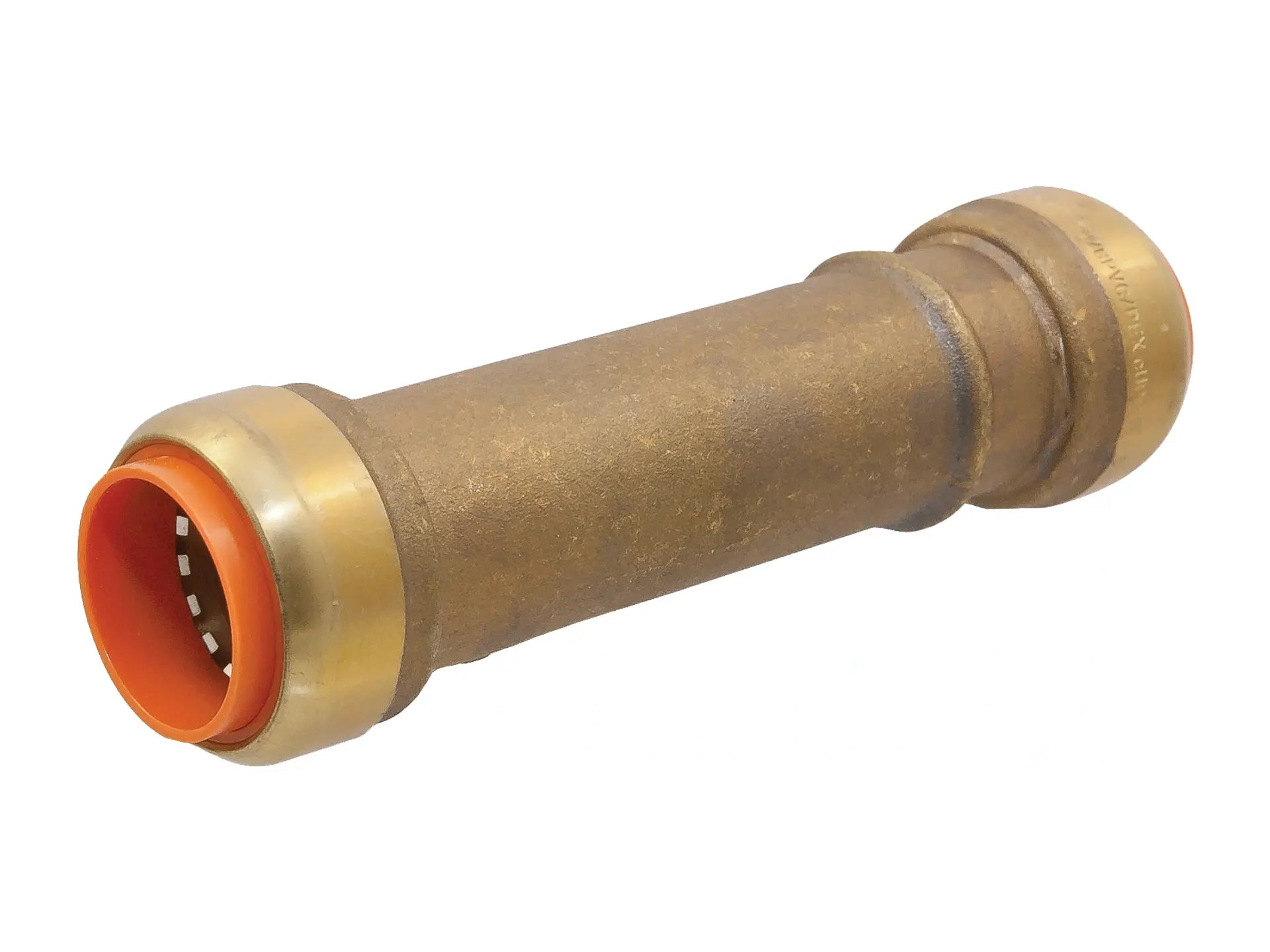

Nibco B020500PE Repair Coupling 1 Inch Push-On End Style

Product Description

The NIBCO B020500PE repair coupling is a 1-inch size coupling with a push-on end style. Constructed from lead-free brass, this pressure repair coupling is dezincification resistant, removable, and reusable. It is suitable for residential and commercial use with potable and non-potable water systems.

• Lead Free Brass
• Push to Connect
• Dezincification Resistant
• For Use with Copper, CPVC or Pex Tubing

Product Highlights

Ideal for repairing copper, CPVC, and PEX tubing in residential and commercial applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: B020500PE
• Country of Origin: CN

Technical Specifications

• Item: Coupling
• Size: 1" x 1"
• Product Type: Repair Coupling
• Material: Brass
• Pressure Rating: 200psi
• Temperature Rating: 200 Degrees F
• Application: Push Connect Repair Coupling, Copper, CPVC & PEX Tubing
• Application Standards: NSF/ANSI 14,61 & 372, ASSE 1061
• End Connection: Push x Push
• Part Number: B020500PE
• Shape: Coupling
• Length: 9.500
• Width: 7.750
• Type of Fitting: Coupling
• Type of Coupling: Repair (No Stop)
• Nominal Pipe Size: 1" x 1"
• Potable Water Code: LL Compliant NSF/ANSI 372
• Manufacturer: NIBCO
• Model: P701-LF
• Height: 1.65"
