Nibco 9405455 companion flange 1 1/2 inch

Product Description

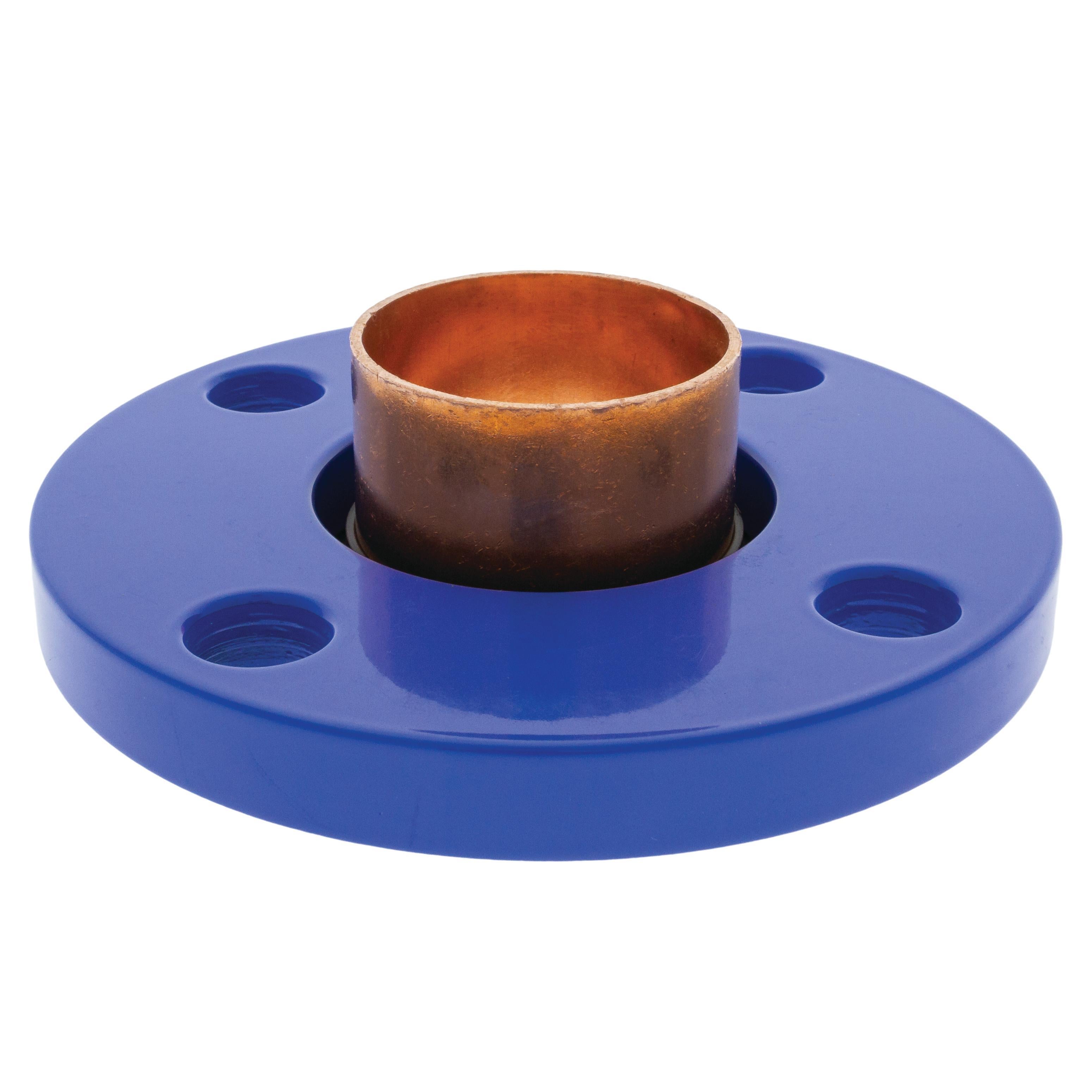

The NIBCO 9405455 2-piece solder pressure Class 150 companion flange is used in residential and commercial plumbing applications. This fitting provides a means for adapting a solder connection to a flange connection. The flange features a solder copper adapter and a steel flange.

• Connects to copper tubing or other fittings by heating or soldering for a permanent, leaktight connection
• Resists scaling and corrosion in potable water applications
• Suitable for higher pressures than standard flanges

Product Highlights

The NIBCO companion flange provides a means for adapting a solder connection to a flange connection in plumbing applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 9405455
• Country of Origin: United States

Technical Specifications

• Part Number: 9405455
• Size: 1.5
• Item: Flange
• Application: Potable Water
• Fitting Shape: Flange
• Connection Type: C x Flange
• Fitting Material: Copper
• Flange Thickness: 5/8 in
• Bolt Hole Diameter: 5/8 in
• End Connection Type: Cup, Flange
• Number of Bolt Holes: 4
• Flange Outside Diameter: 5 in
• Compatible Tube Material: Copper
• Fitting Side A Connection Type: Cup
• Fitting Side B Connection Type: Flange
• Fitting Side A Copper Tube Size: 1 1/2 in
• Fitting Side A Tube Outer Diameter: 1 1/2 in
• Country of Origin: United States
• All Type of Item: Fitting
• All Special Application: Lead-Free*
• Material: ASTM B75 Alloy C12200, ASTM A515 GR70 (Steel Flange)
• Weight: 3.008 lb
• Temperature Range: -20 °F to 275 °F
• Connector Type: Adapter
• Side A Connection: Cup
• Side A Compatible Tube Outer Diameter: 1-1/2 in
• Side B Connection: Flange
• Side B Pipe Size: 1-1/2 in
• For Media Type: Potable Water
• Standards: ASME/ANSI B16.22; MSS SP-104; NSF/ANSI/CAN-61
• End Style: C x Flanged
• Finish: Powder Coated
• Nominal Size: 1-1/2 In
• Pressure Class: 150 lb
• Pressure Rating: 175 psi
• Series: 672-CB
• Temperature Rating: 275 deg F
• Thickness: 0.63 in
• Type: 2-Piece
• Material Grade: C12200
• Fitting Side 1 Tube Outer Diameter: 1 1/2 in
• Fitting Side 1 Copper Tube Size: 1 1/2 in
• Fitting Side 2 Pipe Size: 1 1/2 in
• Fitting Side 1 Connection Type: Cup
• Fitting Side 2 Connection Type: Flange
• Operating Temperature - Maximum: 275 Degrees F
• Operating Temperature - Minimum: -20 Degrees F
• Lead-Free: Yes
• Dezincification Resistant: Yes
• NSF/ANSI/CAN: 61 and 372
