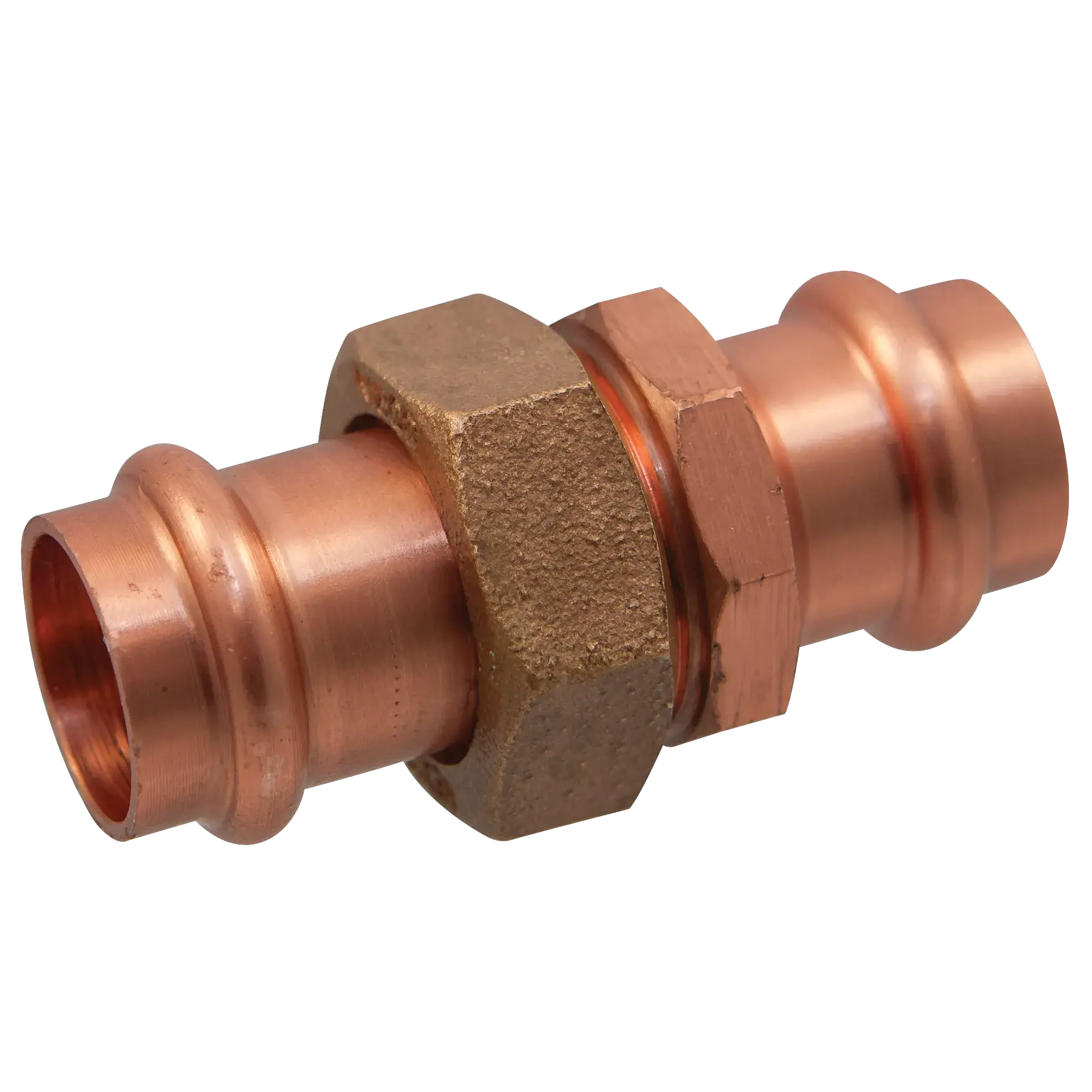

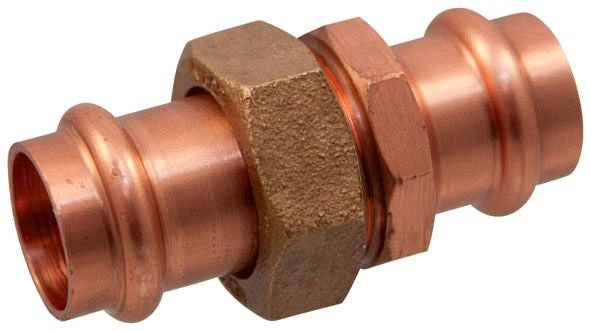

Nibco 9256630FPC PC633 press x press union 1-1/4 in. (9256630FPC)

Product Description

Nibco 9256630FPC is a PC633 press x press copper union designed to join 1-1/4 inch copper tubing for potable, hot, chilled and process water applications in plumbing and HVAC systems. The union uses press-tool installation with an inboard bead and EPDM O-ring to form a watertight seal without flame, solder, or flux. It is copper construction, lead-free and dezincification resistant, rated 200 psi CWP (select to 300 psi) and -20 F to 250 F.

• Press connection with inboard bead and EPDM O-ring provides a watertight seal using a press tool; no flame, solder, or flux required
• Copper construction (wrot copper) with material specification ASTM B75 Alloy C12200; lead-free and dezincification resistant
• Rated 200 psi CWP (select configurations to 300 psi CWP); temperature range -20 F to 250 F; certified to NSF/ANSI/CAN-61, UPC, CSA MSE 13 and PS-117; IAPMO recognized to 300 PSI per ASTM F3226

Product Highlights

PC633 press x press copper union, 1-1/4 in., EPDM O-ring seal, 200 psi CWP (select to 300 psi), -20 F to 250 F, NSF/ANSI/CAN-61, UPC, CSA

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 9256630FPC
• Country of Origin: USA

Technical Specifications

• Brand: Nibco
• Manufacturer Part Number: 9256630FPC
• Model: PC633
• Product Type: Union
• Connection Type: Press x Press
• Size: 1-1/4 in. x 1-1/4 in.
• Nominal Pipe Size: 1-1/4 in.
• Material: CU (wrot copper)
• Material Specification: ASTM B75 Alloy C12200
• Seal Material: EPDM O-ring
• Operating Pressure: 200 psi CWP (select configurations to 300 psi CWP)
• Temperature Range: -20 F to 250 F
• Lead Free: Yes
• Dezincification Resistant: Yes
• Certifications: NSF/ANSI/CAN-61; UPC; CSA MSE 13; PS-117; IAPMO recognized to 300 PSI per ASTM F3226
• Applications: Potable, hot, chilled and process water; plumbing and HVAC; suitable for underground installation
• UPC: 039923452344
• Country of Manufacture: USA
