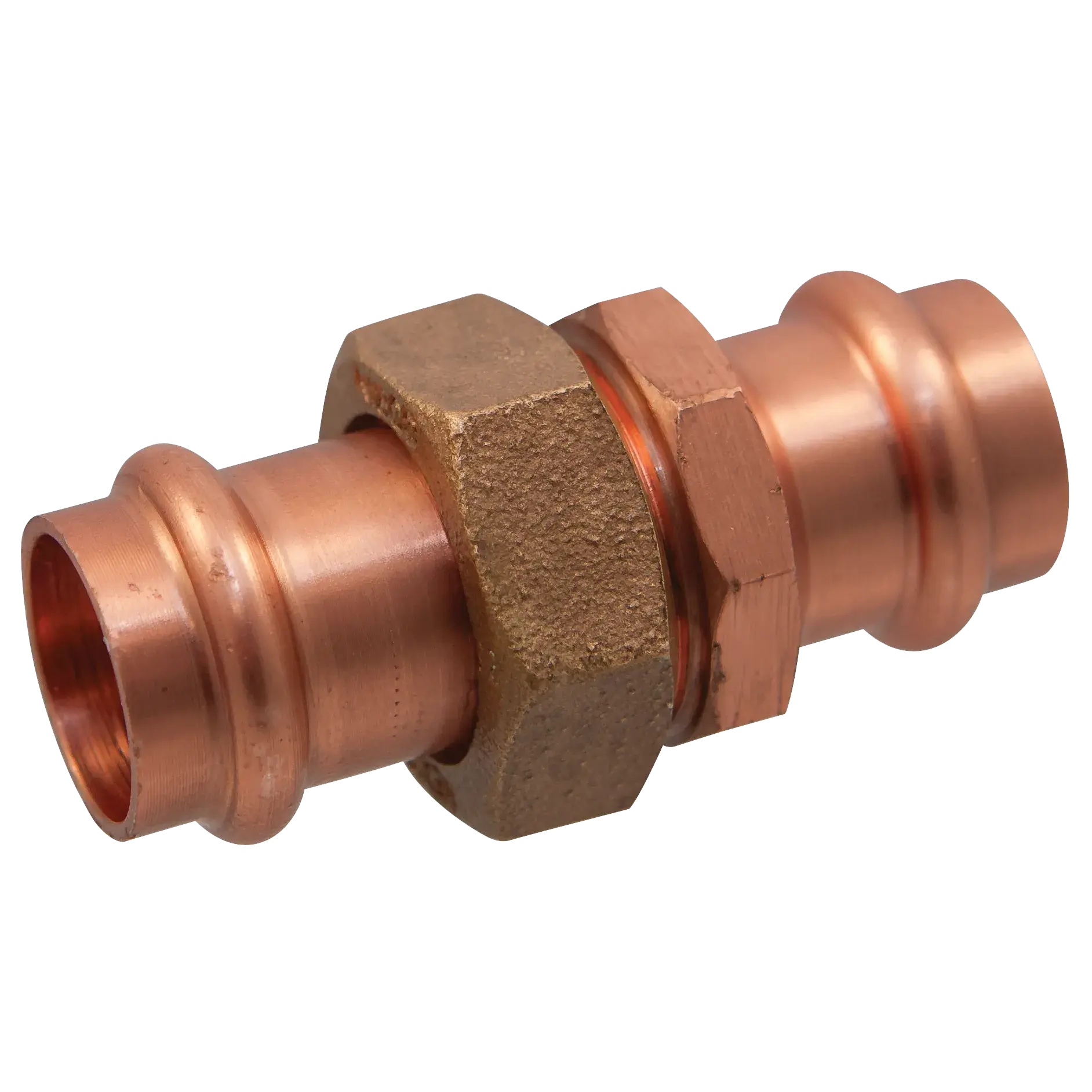

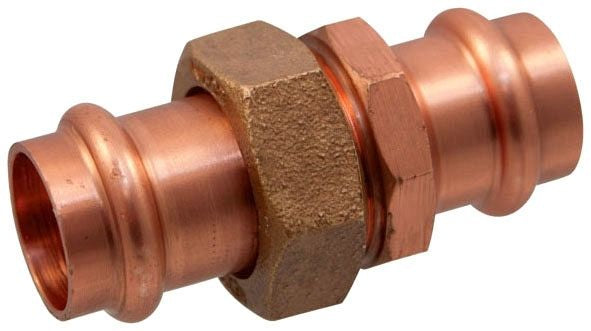

Nibco 9256600FPC PC633 Press x Press Union 1 in

Product Description

Nibco 9256600FPC is a 1-inch PC633 press x press copper union for joining and repairing copper tubing in plumbing and HVAC systems. The fitting uses an inboard bead and EPDM O-ring to form a watertight seal when pressed, eliminating the need for flame, solder, or flux. Constructed of copper with dezincification resistance, it is lead-free, rated 200 psi CWP (select configurations to 300 psi) and rated for -20 F to 250 F.

• Press x press union with inboard bead and EPDM O-ring for watertight press-fit connections without solder or flux
• Copper construction (ASTM B75 / C12200 referenced), lead-free and dezincification resistant; suitable for potable, hot, chilled and process water
• Rated 200 psi CWP (select configurations to 300 psi CWP) and temperature range -20 F to 250 F; certified to NSF/ANSI/CAN-61, UPC, CSA MSE 13, PS-117 and IAPMO recognition per ASTM F3226

Product Highlights

1 in press x press copper union; EPDM seal; 200 psi CWP; -20 F to 250 F; lead-free; DZR

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 9256600FPC

Technical Specifications

• Brand: Nibco
• Manufacturer Part Number: 9256600FPC
• Model: PC633
• Product Name: PC633 Press x Press Union
• Type: Union (straight type)
• Connection Type: Press x Press
• Size: 1 in (nominal pipe size)
• Nominal Pipe Size: 1
• Material: Copper (ASTM B75 / C12200)
• Material Standard: ASTM B75 Alloy C12200
• Seal Material: EPDM O-ring
• Operating Pressure: 200 psi CWP (select configurations to 300 psi CWP)
• Temperature Range: -20 F to 250 F
• Lead Free: Yes
• Dezincification Resistant: Yes
• Weight: 0.804 lb
• UPC: 039923452337
• Certifications: NSF/ANSI/CAN-61; UPC third-party certified; CSA MSE 13 and PS-117; IAPMO recognized to 300 PSI per ASTM F3226
• Application: Potable, hot, chilled and process water; plumbing and HVAC; repair connections
• Installation Note: Can be installed underground
• Press System Compatibility: Compatible with NIBCO Press System fittings, tools, jaws and chains
• Witness Mark: "N" witness mark visible when properly crimped
