Nibco 9256500FPC Cu Union 3/4 Inch (9256500PC)

NIBCO
Brand: NIBCO
SKU: 9256500FPC
Availability: In Stock

Ships same day if ordered by 12 pm
$51.43
$51.43
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

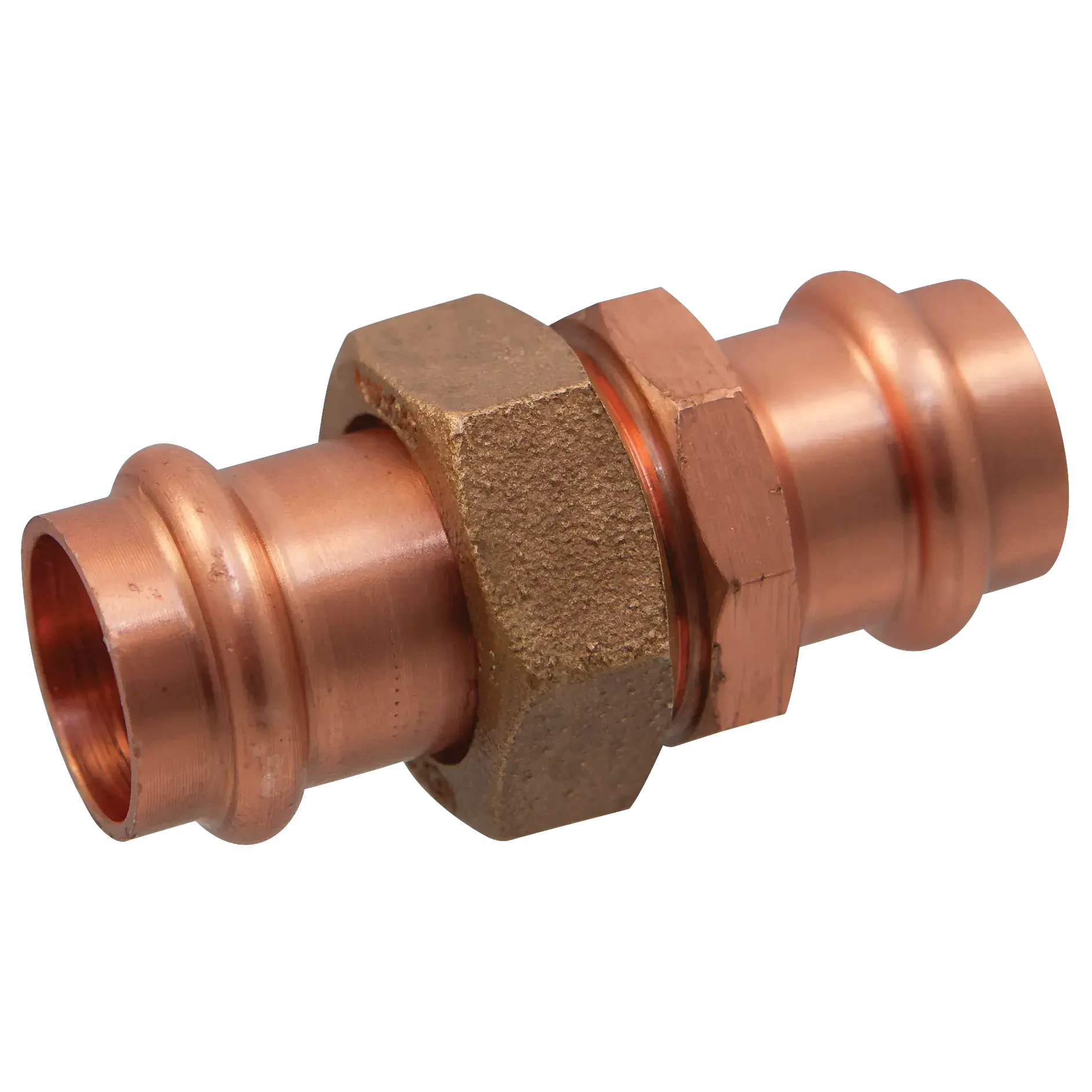

Nibco 9256500FPC is a PC633 press union designed for 3/4 inch ProPress x ProPress connections, allowing repair between two press fittings without line damage. The lead-free union is rated to 200 PSI CWP with test ratings shown to 300/600 PSI and a temperature rating up to 250 Deg F. It features an inboard bead and EPDM O-ring to form a watertight seal when compressed by a press tool.

  • ProPress x ProPress 3/4 inch union (model PC633) for repairs between press connections
  • Lead-free construction with inboard bead and EPDM O-ring for a press-activated watertight seal
  • Rated 200 PSI CWP (select/test configurations to 300/600 PSI) and temperature rating to 250 Deg F

Product Highlights

Press union for 3/4 inch copper press systems, lead-free, EPDM-sealed, certified to multiple industry standards for potable and HVAC applications.

Product Information

Standard Information

  • Brand: NIBCO
  • Manufacturer Part Number: 9256500FPC
  • Country of Origin: USA
Technical Specifications
Brand
Nibco
Manufacturer Part Number
9256500FPC
Model
PC633
Size
3/4 Inch x 3/4 Inch
End Connection
ProPress x ProPress
Type
Straight Union (Ground Joint)
Material
Copper (DZR / ASTM B75 Alloy C12200) - lead-free
O-ring Material
EPDM
Lead-free
Yes
Pressure Rating
200 PSI CWP (test ratings shown to 300/600 PSI)
Temperature Rating
Up to 250 Deg F
Applicable Standards/Certifications
NSF/ANSI 61/372, IAPMO PS 117, UL/ANSI 213, FM Class 1920, ICC-ES IC1002, ABS, CSA, ASME B16.51/B31.1/B31.3/B31.9, NFPA 13/13D/13R
Application
Potable hot and cold water, rainwater/gray water, fire sprinkler, chilled water, hydronic heating, low pressure and residential steam, ethanol, compressed air, non-medical gas, vacuum
Model Line Description
Press x Press Union (PC633)
UPC
039923452320
Dimensions (Length x Width x Height)
3.08 in x 1.65 in x 1.65 in
Material Specification Note
Alternate listings reference DZR copper / ASTM B75 Alloy C12200
