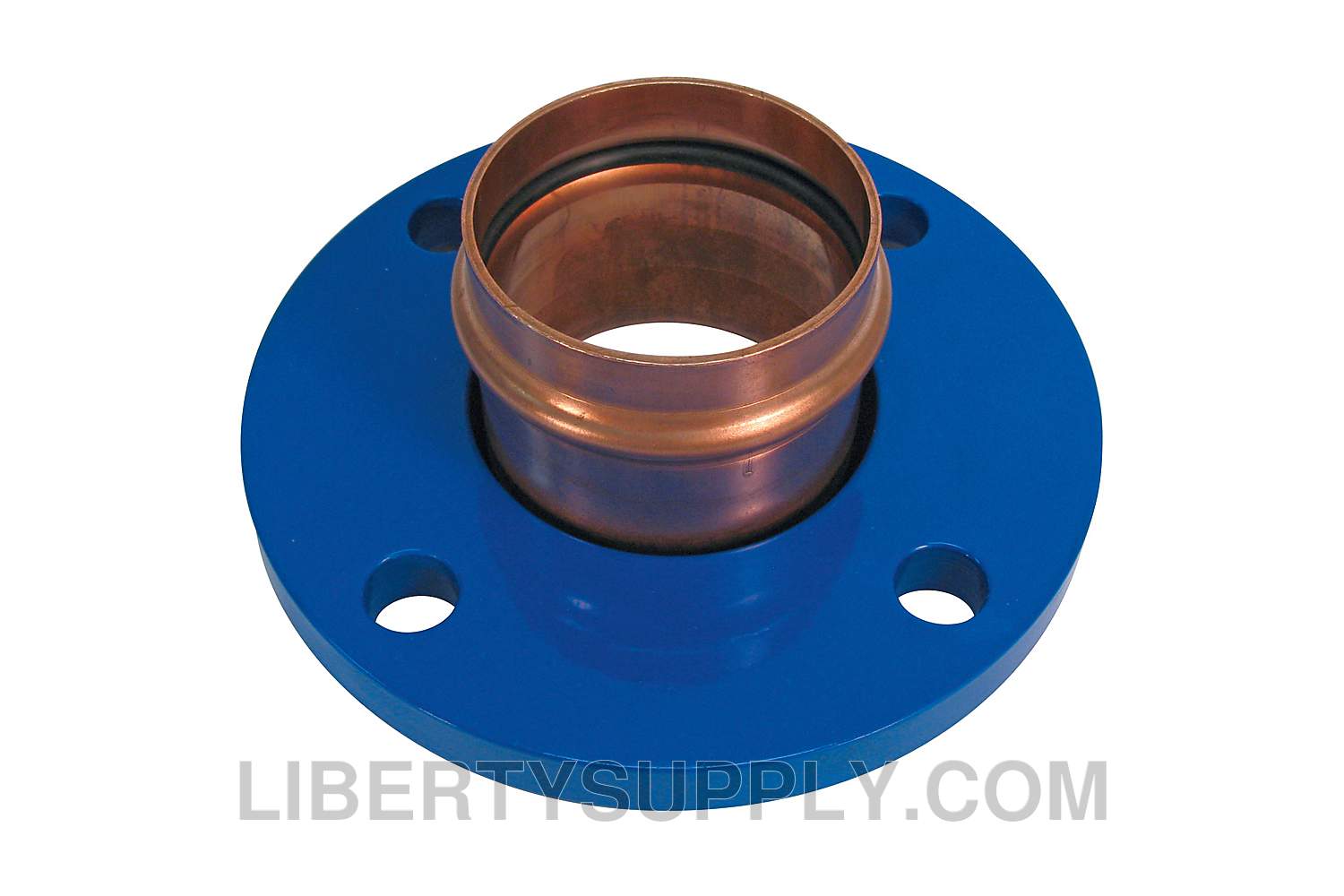

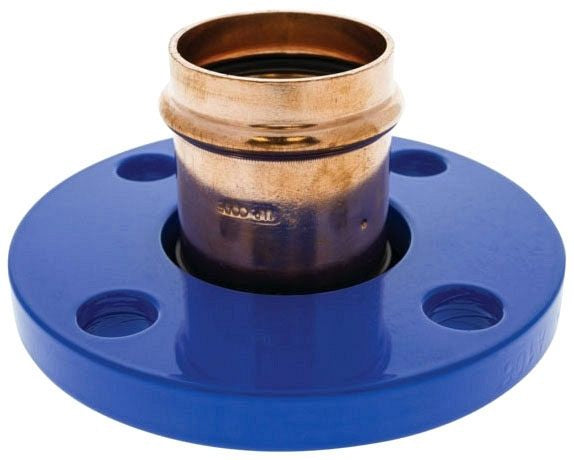

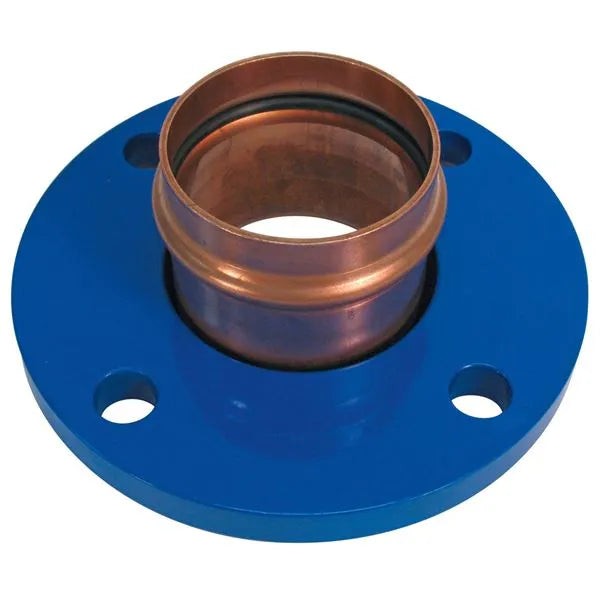

NIBCO 9145756PC PC641 Companion Flange 4 Inch Press x Flange

Product Description

The NIBCO PC641 companion flange with MPN 9145756PC connects a press fitting to a flange connection. This fitting is designed for both residential and commercial use, suitable for hot, chilled, and process water in plumbing and HVAC applications.

• Copper press connection and steel flange connection
• Adapts press connection into flange connection
• Suitable for underground installation

Product Highlights

Reliable sealing with an EPDM O-ring. Creates a watertight seal under pressure, ensuring leak-free performance. Made from durable materials for long-lasting use.

Product Information

Standard Information

• Brand: NIBCO
• MPN: 9145756PC

Technical Specifications

• Model: PC641
• Type: Press Companion Flanges
• Nominal Pipe Size: 4 inches
• Material: Copper
• Connection Type: Press x Flange
• UPC Code: 039923444622
• Application: Plumbing and HVAC System
• Temperature Rating: -20 to 250 degrees F
• Pressure Rating: 200 PSI CWP
• End Connection: Press x Flanged
• Weight: 10.921 lbs
• Applicable Standards: ASME B16/51, NSF/ANSI 372, UPC, CSA MSE 13 and PS-117
• Material Specification: ASTM A515/B88
• Potable Water Code: LL Compliant NSF/ANSI 372
