NIBCO 9145506PC PC641 2-1/2 Press Companion Flange

Product Description

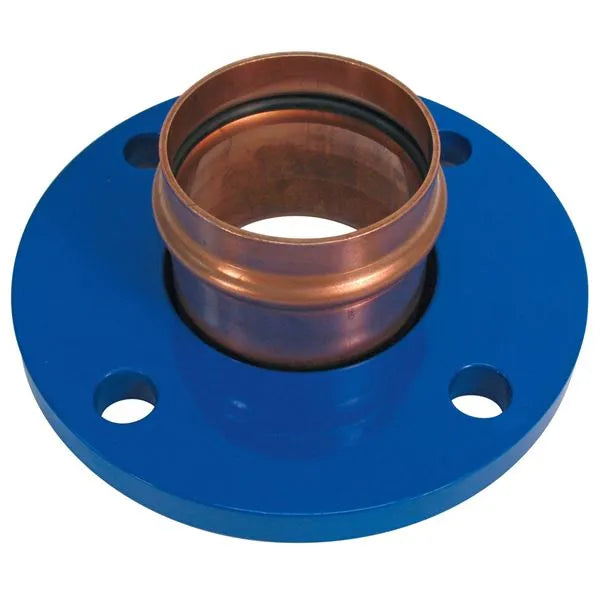

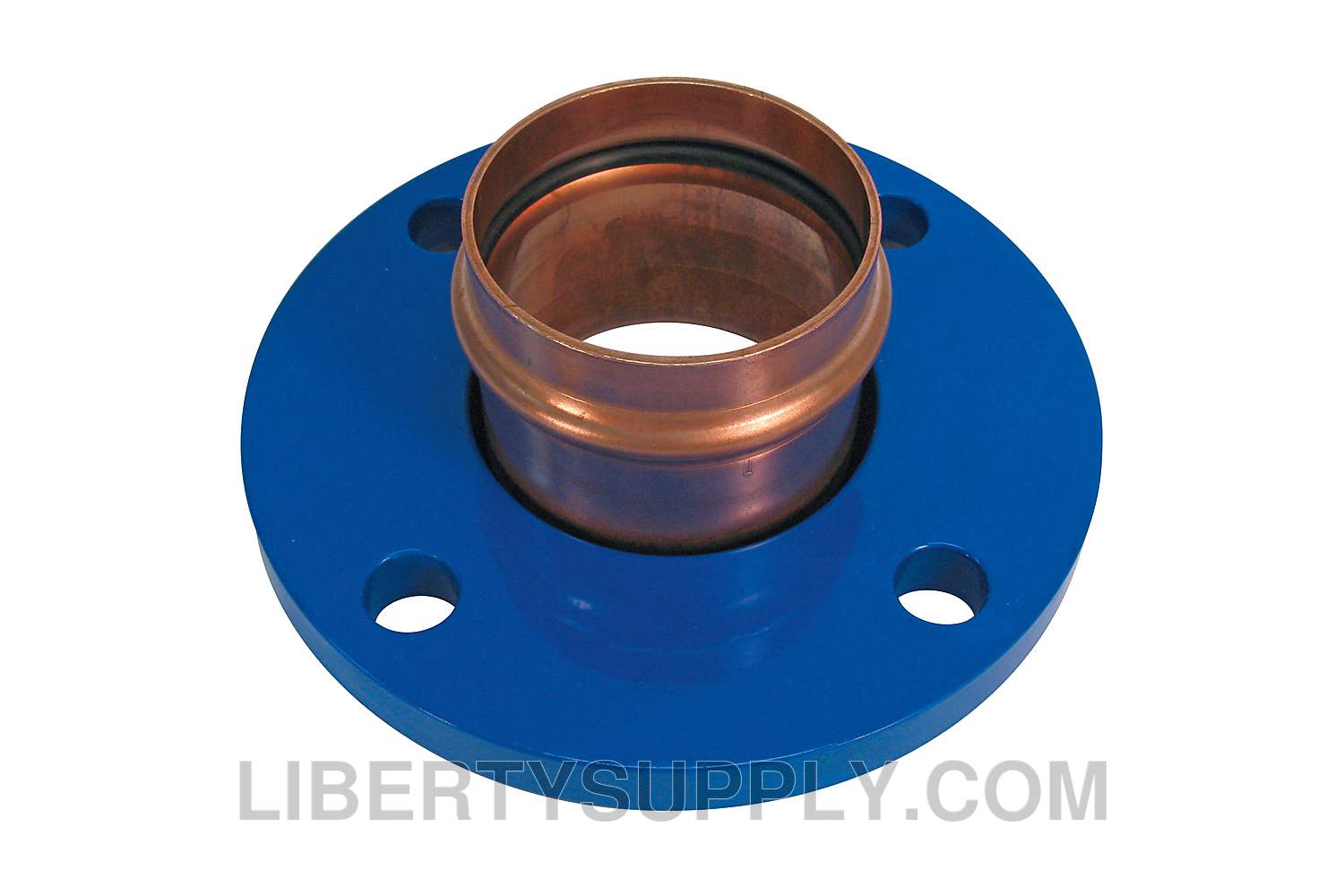

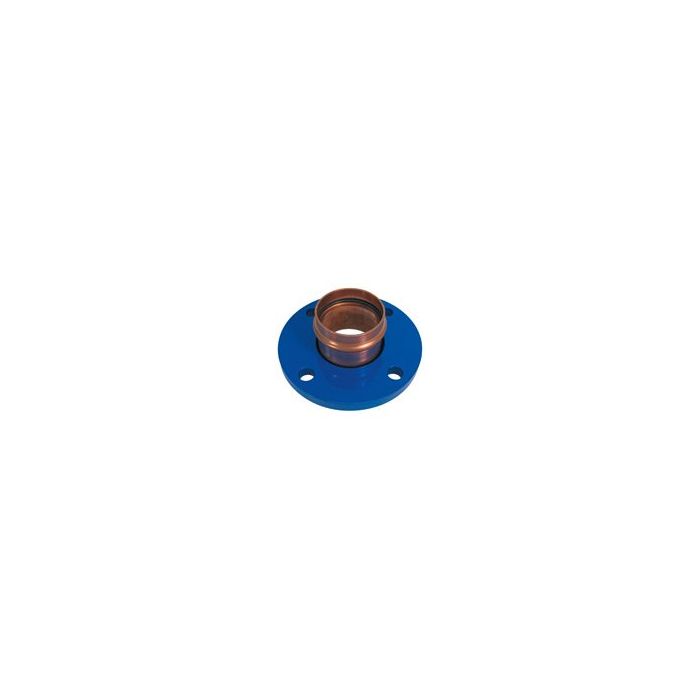

The NIBCO Press System companion flange, identified by MPN 9145506PC, features an inboard bead and EPDM O-ring. The design allows the O-ring to form a watertight seal under pressure from a pressing tool. This fitting adapts a press connection to a flange connection, making it versatile for various installations. It includes a copper press connection and a steel flanged end connection, suitable for underground installation.

• Adapts press connections to flange connections
• Copper and steel construction
• Nominal pipe size is two and one-half inches

Product Highlights

This product is suitable for lead-free applications and can be used in automatic sprinkler systems as well as commercial plumbing installations.

Product Information

Standard Information

• Manufacturer Part Number: 9145506PC
• Model: PC641

Technical Specifications

• Nominal Pipe Size: 2 1/2 inches
• End Connection Type: Press x Flange
• Material: Copper
• Type: Press Companion Flanges
• Applications: Lead-Free
• System Use: Automatic Sprinkler Systems, Commercial Plumbing
• Potable Water Code: LL Compliant NSF/ANSI 372
• Fitting Type: Flange
• Length: 7 inches
• Width: 7 inches
• Height: 2.77 inches
• Weight: 6.418 lbs.
• Operating Pressure: 200 psi CWP
• Operating Temperature: -20°F to 250°F
• UPC Code: 039923444608
