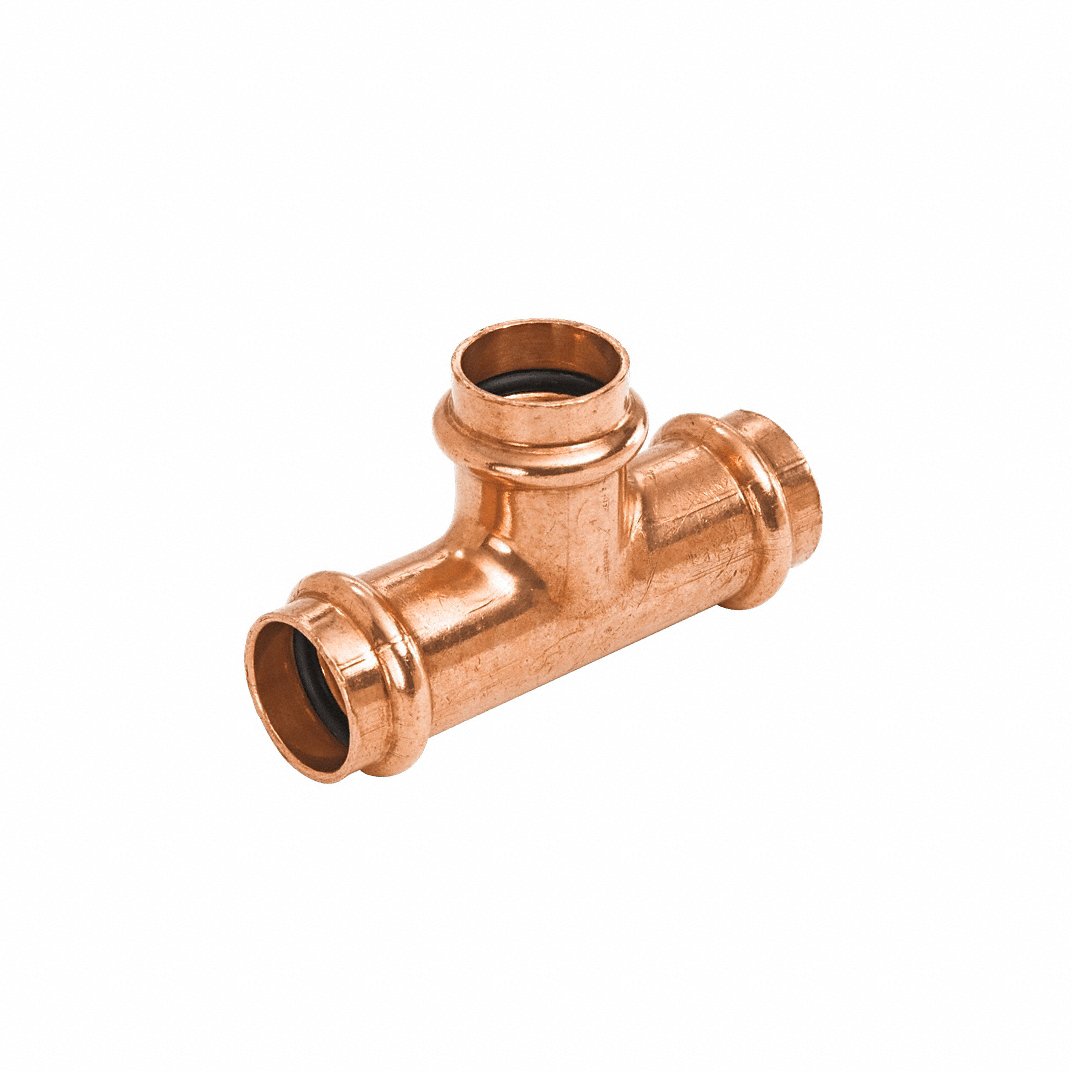

Nibco 9107052pc Press Tee Fitting 3 in X 3 in X 1/2 in Cts Copper Reducer Tee Epdm O-ring

Product Description

The NIBCO 9107052pc is a copper press tee fitting designed for plumbing systems that carry potable water. It connects tubing using a press-fit method, which means no open flame, no soldering, and no flux. Plumbers press the fitting directly onto copper tubing using a standard press tool. An EPDM O-ring inside each socket creates a tight, leak-free seal. This approach speeds up installation and reduces labor time on commercial and residential jobs alike. The fitting is a reducer tee configuration. Side A and Side B each accept 3 inch nominal CTS tubing. Side C accepts 1/2 inch nominal CTS tubing. This makes it well suited for branching a smaller line off a larger main run without extra adapters. The body is made from C12200 copper, which is a phosphorus-deoxidized alloy known for its corrosion resistance and long service life in water systems. This fitting is compatible with Type K, Type L, and Type M copper tubing, giving installers flexibility across different job specifications. It is rated for a maximum operating pressure of 200 psi and handles temperatures from -20 F to 200 F, covering a wide range of plumbing and light mechanical service conditions. The NIBCO 9107052pc meets ASME B16/51, ASTM B75, ASTM F3226, and CSA MSE 13 and PS-117 standards, so it qualifies for use in code-compliant installations. It is manufactured in the USA. Plumbers, mechanical contractors, and service technicians working on potable water distribution lines will find this fitting reliable and straightforward to install.

• Press-fit connection on all three sides eliminates soldering and open flame during installation
• EPDM O-ring seals provide a leak-free connection rated to 200 psi
• Compatible with Type K, Type L, and Type M copper tubing for broad job-site flexibility

Product Highlights

The NIBCO 9107052pc copper press reducer tee delivers fast, code-compliant connections in potable water systems without soldering. Its 3 in x 3 in x 1/2 in CTS configuration handles main-line branching with a single fitting.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 9107052pc

Technical Specifications

• Series: Press System
• Fitting Shape: Tee
• Connector Type: Reducer
• Material: C12200 Copper
• O-Ring Material: EPDM
• Fitting Side A Connection Type: Press-fit
• Fitting Side A Copper Tube Size (Nominal): 3 inches
• Fitting Side B Connection Type: Press-fit
• Fitting Side B Copper Tube Size (Nominal): 3 inches
• Fitting Side C Connection Type: Press-fit
• Fitting Side C Copper Tube Size (Nominal): 1/2 inches
• Maximum Operating Pressure: 200 psi
• Temperature Range: -20 F to 200 F
• For Media Type: Potable Water
• Compatible Copper Tube Type: Type K, Type L, Type M
• Standards: ASME B16/51, ASTM B75, ASTM F3226, CSA MSE 13 and PS-117
• Country of Origin: USA
