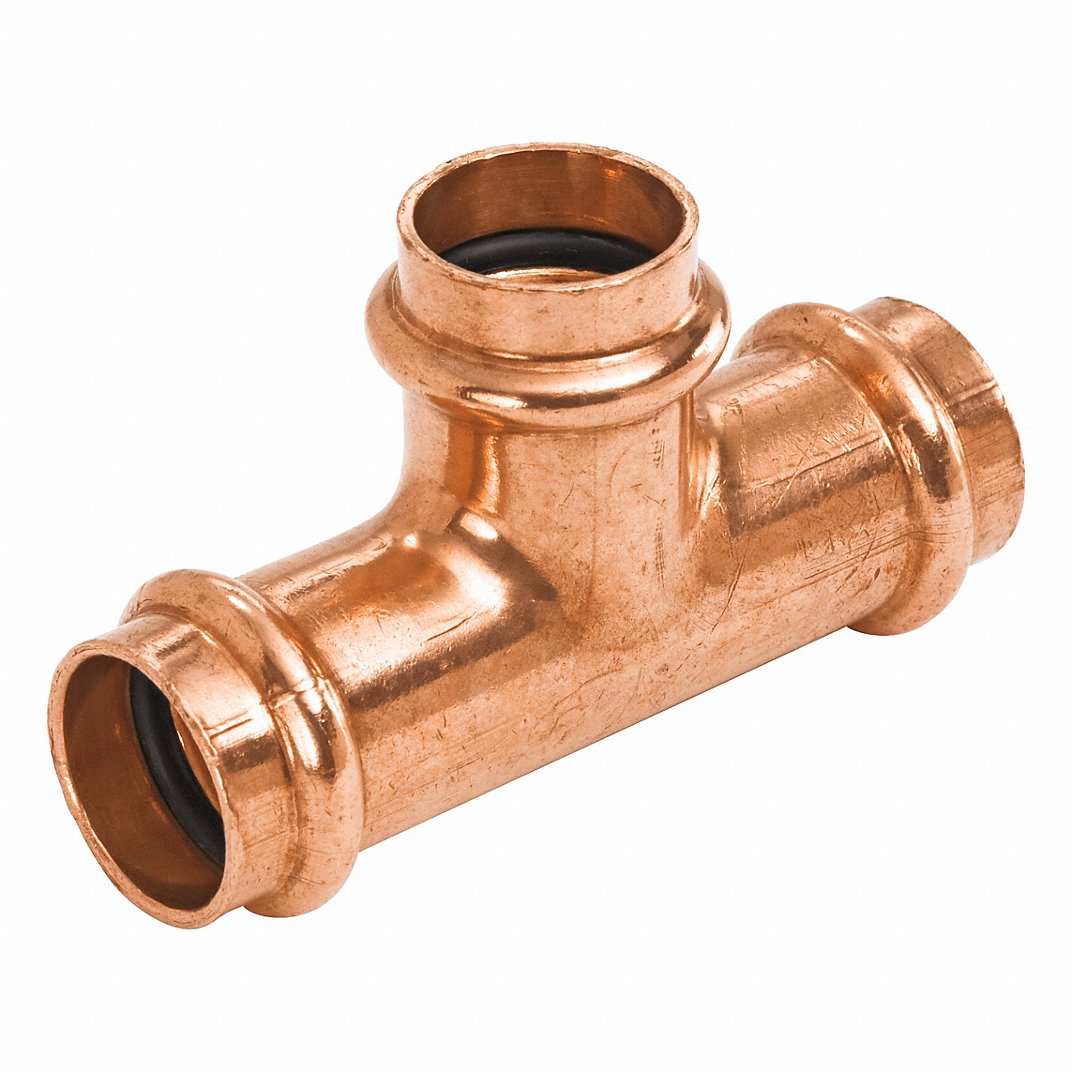

Nibco 9106605pc Crimp Tee 3 Inches Cts X 3 Inches Cts X 3 Inches Cts Press-fit Copper

Product Description

The NIBCO 9106605pc is a 3-inch copper press tee designed for professional plumbing systems that require fast, reliable, flame-free connections. This fitting belongs to the NIBCO Press System series and uses a press-fit connection method on all three ports. Each port connects to 3-inch copper tubing in the CTS (Copper Tube Size) dimension. Plumbers and mechanical contractors use this tee to split or combine flow in potable water systems, climate control piping, irrigation networks, and tubing distribution systems. The press-fit design eliminates the need for open-flame soldering, which speeds up installation and reduces fire risk on the job site. A built-in EPDM O-ring on each port creates a watertight seal when compressed with a standard press tool. The fitting is made from C12200 copper, which is a phosphorus-deoxidized alloy known for its corrosion resistance, formability, and long service life in water systems. This tee is compatible with Type K, Type L, and Type M copper tubing, giving installers flexibility across different project specifications. It is rated for a maximum operating pressure of 200 psi and performs across a temperature range of -20 degrees F to 250 degrees F, making it suitable for both chilled water and hot water applications. The NIBCO 9106605pc meets multiple industry standards including ASME B16/51, ASTM B75, CSA MSE 13, IAPMO ASTM F3226, and IAPMO PS-117, confirming it is code-compliant for use in commercial and residential plumbing installations. This fitting is manufactured in the USA.

• Press-fit connection on all three ports for fast, no-flame installation with a standard press tool
• EPDM O-ring seal on each port delivers a secure, leak-tight connection in potable water and HVAC applications
• C12200 copper construction rated to 200 psi and compatible with Type K, Type L, and Type M copper tubing

Product Highlights

The NIBCO 9106605pc copper press tee offers a code-compliant, flame-free solution for 3-inch CTS plumbing connections in potable water, climate control, and irrigation systems. Its EPDM O-ring seal and 200 psi pressure rating make it a dependable choice for commercial and residential mechanical contractors.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 9106605pc

Technical Specifications

• Series: Press System
• Fitting Shape: Tee
• Material: C12200 Copper
• O-Ring Material: EPDM
• Fitting Side A Connection Type: Press-Fit
• Fitting Side A Copper Tube Size (Nominal): 3 inches
• Fitting Side B Connection Type: Press-Fit
• Fitting Side B Copper Tube Size (Nominal): 3 inches
• Fitting Side C Connection Type: Press-Fit
• Fitting Side C Copper Tube Size (Nominal): 3 inches
• Maximum Operating Pressure: 200 psi
• Temperature Range: -20 F to 250 F
• Application: Climate Control; Irrigation; Tubing Systems
• For Media Type: Potable Water
• Compatible Tube Material: Copper
• Compatible Copper Tube Type: Type K; Type L; Type M
• Standards: ASME B16/51; ASTM B75; CSA MSE 13; IAPMO ASTM F3226; IAPMO PS-117
• Country of Origin: USA (subject to change)
