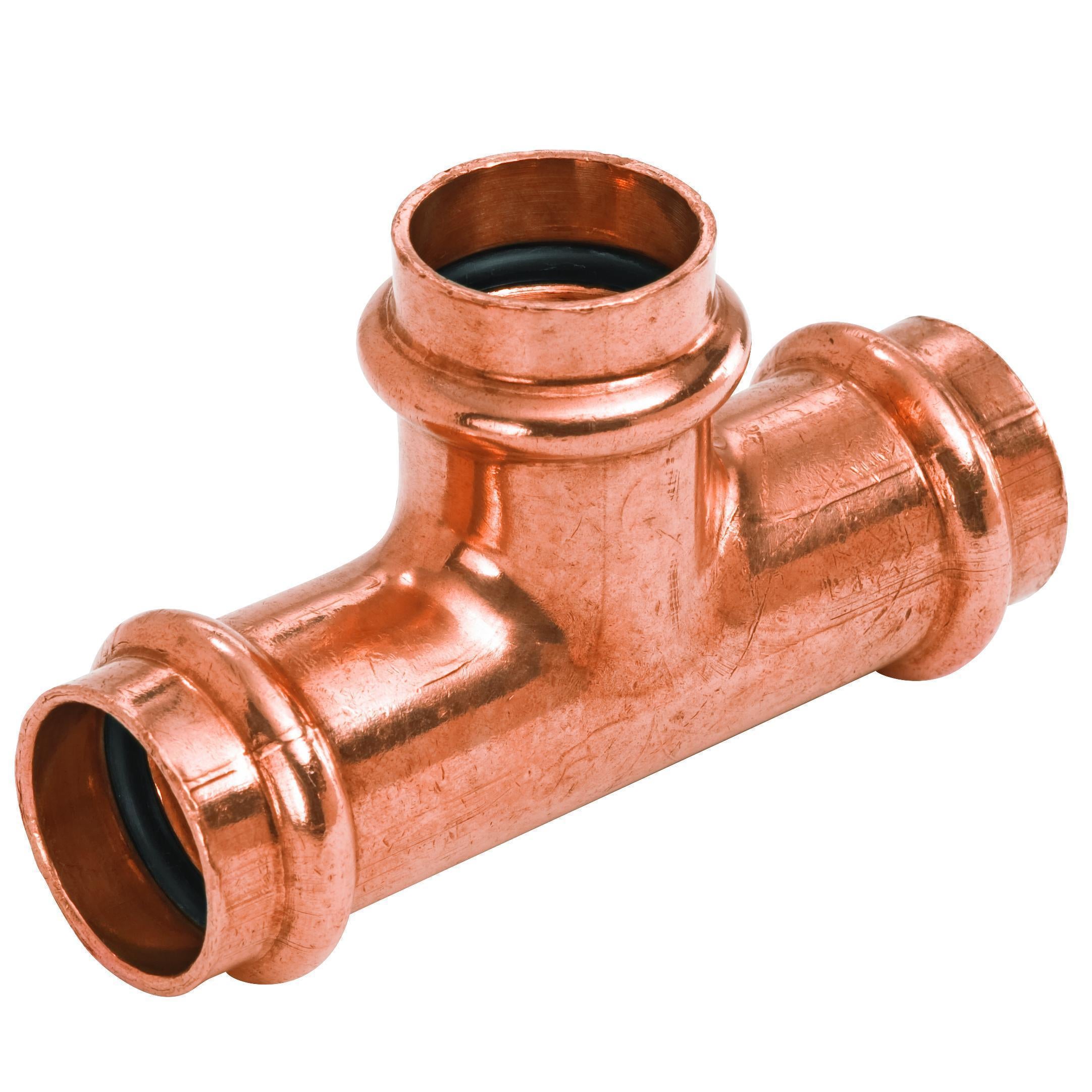

Nibco 9104255PC Tee 2 x 1/2 x 2 Inch

Product Description

The Nibco 9104255PC copper tee is designed for joining copper tubing systems in plumbing and HVAC applications. This press fitting provides a secure, leaktight connection in seconds without needing flame, solder, or flux. It is suitable for potable water systems and can be installed underground.

• Suitable for plumbing applications with potable water
• Crimps onto tubing
• Sealing O-ring ensures a secure, leaktight connection

Product Highlights

The NIBCO press system fittings are the fastest and easiest way to join copper tubing systems. When properly crimped, a unique "N" witness mark is clearly visible.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 9104255PC
• Country of Origin: USA

Technical Specifications

• MPN: 9104255PC
• Brand: NIBCO
• Type: Tee
• Connection Type: Prs x Prs x Prs
• Nominal Pipe Size: 2 x 1/2 x 2
• Material: CU Wrot Copper
• Fitting Shape: Tee
• Connector Type: Reducer
• Material Standard: ASTM B75
• Material Specification: UNS C12200
• O-Ring Material: EPDM
• Fitting Side A Connection Type: Press-fit
• Fitting Side A Copper Tube Size (Nominal): 2 in
• Fitting Side B Connection Type: Press-fit
• Fitting Side B Copper Tube Size (Nominal): 1/2 in
• Fitting Side C Connection Type: Press-fit
• Fitting Side C Copper Tube Size (Nominal): 2 in
• Maximum Operating Pressure: 200 psi
• Temperature Range: -20 °F to 250 °F
• Application: Climate Control; Irrigation; Tubing Systems
• For Media Type: Potable Water
• Compatible Tube Material: Copper
• Compatible Copper Tube Type: Type K; Type L; Type M
• Standards: ASME B16/51; ASTM B75; CSA MSE 13; IAPMO ASTM F3226; IAPMO PS-117
• UPC Code: 039923350152
• Series: Press
• Sub Brand: Press System®
• Item Name: Reducing Tee
• Series/Model: PC611
• Nominal Size: 2 X 1/2 X 2 IN
• Maximum Pressure: 200 PSI
• Temperature Rating: -20 - 250 DEG F
• Industry Standards: ASME B16.51, CSA MSE 13, PS-117 and UPC
• Wrot: Yes
• Lead Free: Yes
• Domestic/Import: Domestic
• End Style: Press
• Country of Origin: United States
