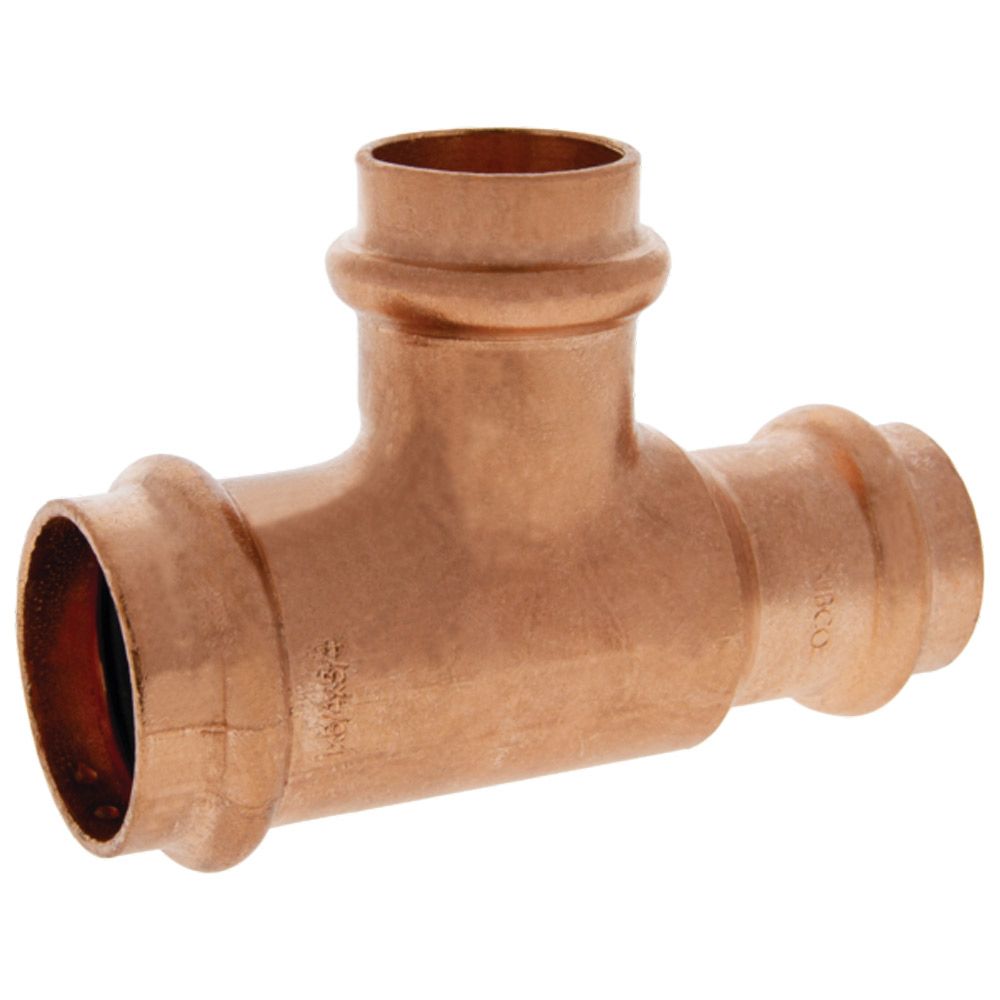

Nibco 9101705PC Nibco PC611 Press Copper Tee 1-1/2 x 1-1/4 x 1-1/4

Product Description

The Nibco 9101705PC is a wrot copper reducing tee designed for press connections. It measures one and one-half inches by one and one-quarter inches. This fitting is part of the Nibco press system, which allows for quick and secure connections without the need for flame, solder, or flux.

• Press connection type eliminates the need for soldering.
• Constructed from lead-free copper, ensuring safety and compliance.
• Designed for use in hot, chilled, and potable water applications.

Product Highlights

This reducing tee is user-friendly, allowing for fast installation in both residential and commercial settings. Its unique design includes an inboard bead and EPDM O-ring that creates a watertight seal upon pressing. The N witness mark indicates proper crimping, ensuring a reliable installation.

Product Information

Standard Information

• Brand: Nibco
• Manufacturer: Nibco

Technical Specifications

• MPN: 9101705PC
• Model: PC611
• Connection Size: one and one-half inches by one and one-quarter inches by one and one-quarter inches
• Connection Type: Press
• Material: Wrot Copper
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 250 degrees Fahrenheit
• Standards/Certifications: ASME B16/51, CSA MSE 13 and PS-117, UPC listed
• Applications: Suitable for residential and commercial water systems, plumbing, and HVAC applications
